Marine Continuous Composite Aluminum Honeycomb Ceiling

Marine Continuous Composite Aluminum Honeycomb Ceiling

This product is the type A steel sheet composite aluminum honey ceiling board. Its surface material is PVC/PET film laminated or galvanized steel sheet and the core material is aluminum honeycomb. This composite aluminum honeycomb panel can be used in the cabins, deck house and meeting room of various ships. This aluminum honeycomb ceiling board is fireproof and the fire protecting rating is B0. Certificates about this marine aluminum honeycomb ceiling are CCS, BV, DNV, KR, NK, LR, RINA, etc.

Features:

1. Surface finish: PVC/PET film laminated or galvanized steel sheet

2. Core material: aluminum honeycomb

3. Thickness: 30mm, 25mm, 20mm

4. Fire protecting rating: B0

5. Certificates: CCS, BV, DNV, LR, NK, KR, RINA, etc.

6. Customized size available

Specifications:

Model

T30A

T25A

T20A

Fireproof rating

B-0

B-0

B0

Thickness

30mm

25mm

20mm

Width

500/600mm

Dimension

30/25/20mm¡Á550/600mm ¡ÁL(Max 3000mm)

Weight

12.3 kg/©O

11.6kg/©O

11.42 kg/©O

Sound reduction

30dB(A)

29dB(A)

27 dB(A)

Thermal transmittance

3.25 Kcal/©Oh¡¤¡æ

Surface material

PVC/PET film laminated (low flame spread) or galvanized steel sheet

Core material

Aluminum honeycomb

Tolerances

Width(-1,0), Length ¡À3, Thickness(-1,0)

Product displaying:

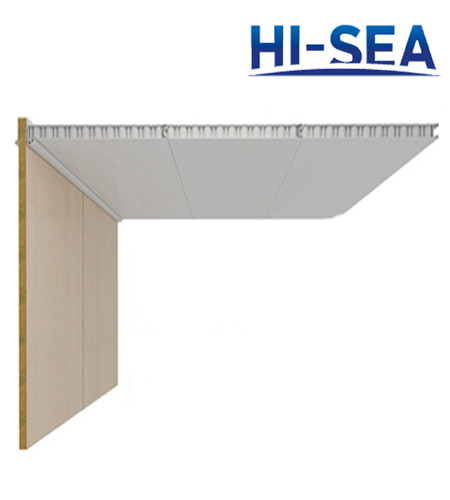

Marine Continuous Composite Aluminum Honeycomb Ceiling

Type A Steel Sheet Composite Aluminum Honeycomb Ceiling
