Type A Aluminum Sheet Composite Aluminum Honeycomb Wall Panel

Type A Aluminum Sheet Composite Aluminum Honeycomb Wall Panel

Aluminum honeycomb panel is one kind of marine decorative materials used as wall panel in the cabins and washroom on various ships. This surface of this marine wall panel is PVC/PET laminated or aluminum sheet, and the core material is composite aluminum honeycomb. Our company four types of the aluminum honeycomb wall panel, this is the type A with aluminum sheet. Certificates about this marine aluminum wall panel are CCS, BV, DNV, KR, NK, RINA, etc.

Features:

1. Fire protecting rating: C

2. Surface material: PVC/PET film laminated or aluminum sheet

3. Core material: aluminum honeycomb

4. Thickness: 50mm, 30mm, 25mm, 20mm, 15mm

5. Normal width: 550/600mm, Length customized (max. 3600mm)

6. Certificates: CCS, BV, DNV, KR, NK, RINA, etc.

7. Design and manufacture special structure required by clients

Specification:

Model

B50C

B30C

B25C

B20C

B15C

Fire protecting rating

C

C

C

C

C

Thickness

50mm

30mm

25mm

20mm

15mm

Dimension

W¡Á T ¡Á L: 550/600mm¡Á 50/30/25/20/15mm ¡Á (max. 3600mm)

Sound reduction

33 dB(A)

30 dB(A)

29 dB(A)

27 dB(A)

25 dB(A)

Weight

6.5 kg/©O

5.6kg/©O

5.4 kg/©O

5.2 kg/©O

5.0 kg/©O

Thermal transmittance

2.25 kcal/©O¡¤h¡æ

3.25 kcal/©O¡¤h¡æ

3.35 kcal/©O¡¤h¡æ

3.35kcal/©O¡¤h¡æ

3.35 kcal/©O¡¤h¡æ

Surface finish

PVC/PET film laminated (low flame-spread) or aluminum sheet

Core material

Aluminum honeycomb

Tolerances

Width(-1,0), Thickness(-1,0), Length ¡À3,


Product displaying:

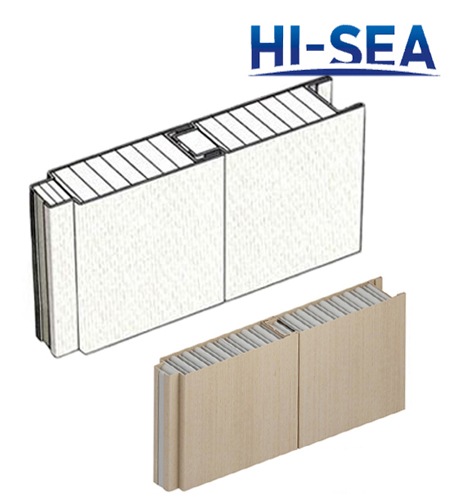

Type A Aluminum Sheet Composite Aluminum Honeycomb Wall Panel

Marine Aluminum Sheet Composite Aluminum Honeycomb Wall Board
