Type C Aluminum Sheet Composite Aluminum Honeycomb Wall Panel

Type C Aluminum Sheet Composite Aluminum Honeycomb Wall Panel

As a kind of marine decorative materials, aluminum honeycomb panel is widely used as wall panel for the cabins, bulkhead and deck house of various ships. This is one of the four types of composite aluminum honeycomb wall panels: type C with aluminum sheet. Our products are manufactured to the highest quality standards and approved by the major marine classifications society such as BV, DNV, CCS, KR, NK, etc.

Features:

1. Fire protecting rating: C

2. Normal width: 600/550mm

3. Thickness: 50/30/25/15mm

4. Length customized, (max. 3600mm)

5. Surface material: PVC/PET film laminated or aluminum sheet

6. Core material: aluminum honeycomb

7. Certificates: CCS, BV, DNV, KR, NK, RINA, etc.

8. OEM service available

Specification:

Model	B50C	B30C	B25C	B20C	B15C
Fire resistant rating	C	C	C	C	C
Normal width	600/550mm
Thickness	50mm	30mm	25mm	20mm	15mm
Dimension	600/550mm Width × 50/30/25/20/15mm Thickness × (Max. 3600mm) Length
Sound reduction	33dB(A)	30dB(A)	29dB(A)	27dB(A)	25dB(A)
Weight	6kg/㎡	5.6kg/㎡	5.4kg/㎡	5.2kg/㎡	5.0kg/㎡
Thermal transmittance	2.25 kcal/㎡·h℃	3.25 kcal/㎡·h℃	3.35 kcal/㎡·h℃	3.35 kcal/㎡·h℃	3.35 kcal/㎡·h℃
Surface finish	PVC/PET film laminated (low flame-spread) or aluminum sheet
Core material	Aluminum honeycomb
Tolerances	Width(-1,0), Length ±3, Thickness(-1,0)

Product displaying:

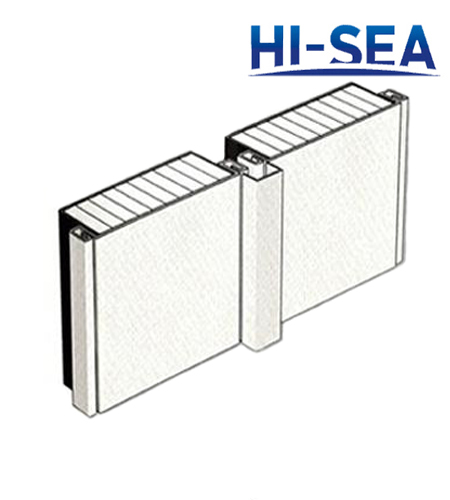

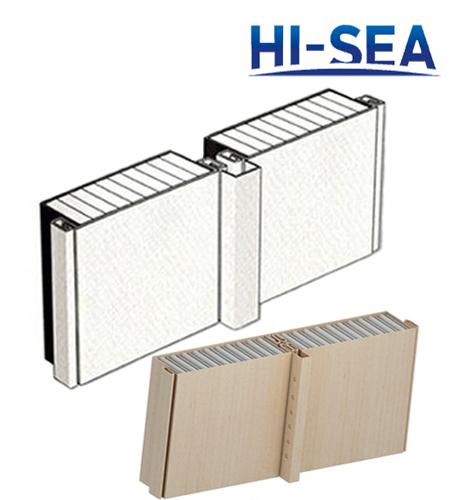

Aluminum Sheet Composite Aluminum Honeycomb Wall Panel
