Type M Composite Rock Wool Acoustic Wall Panel

[Search Related Products]
Type M Composite Rock Wool Acoustic Wall Panel

Type M Composite Rock Wool Acoustic Wall Panel

This product is the type M composite rock wool wall panel with the property of high sound reduction. The sound reduction of it is 45dB(A). Besides, this type acoustic wall panel is heat insulation and the fire resistant rating is B-15. With the features of fire resistance and sound reduction, this product is frequently used in the cabin, meeting room and movie room of various ships. This type wall board is approved by certificates of CCS, BV, DNV, NK, etc. and the certificate could be offered according to client¡¯s demand.

Features:

1. Marine composite rock wool acoustic wall panel

2. Model: B50MG

3. Fire protecting rating: B-15

4. Sound reduction: 45dB(A)

5. Thickness: 50mm

6. Width: 550mm

7. Length is customized, (max. 3500mm)

8. Material: PVC film or galvanized steel sheet, rock wool

9. Certificates: ABS CCS, DNV, BV, KR, etc.

Specifications:

Type

B50MG

Fire protecting rating

B-15

Weight

22.4kg/m2

Sound reduction

45dB(A)

Thermal transmittance

0.55Kcal/m2h¡¤¡ãC

Core material

Rock wool 150kg/m3

Surface finish

PVC film(150¦Ì,low flame spread) or galvanized steel

Dimension

50mm( t )¡Á550mm( w )¡Álength (max.3500mm)

Tolerances

Thickness(-1, 0), Length¡À3, Width(-1, 0)

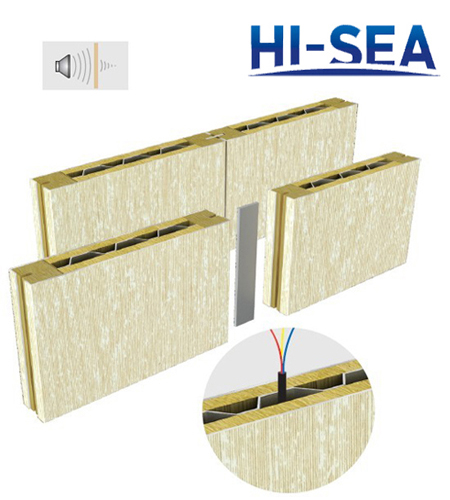

Product displaying: Type M Composite Rock Wool Acoustic Wall Panel

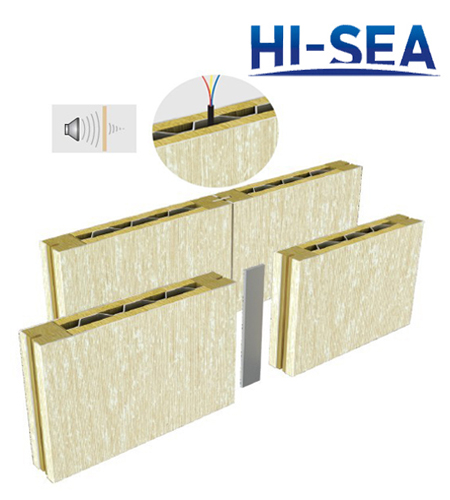

Type M Composite Rock Wool Acoustic Wall Board
