Type C Composite Rock Wool Wall Panel

[Search Related Products]

Type C Composite Rock Wool Wall Panel

Type C Composite Rock Wool Wall Panel

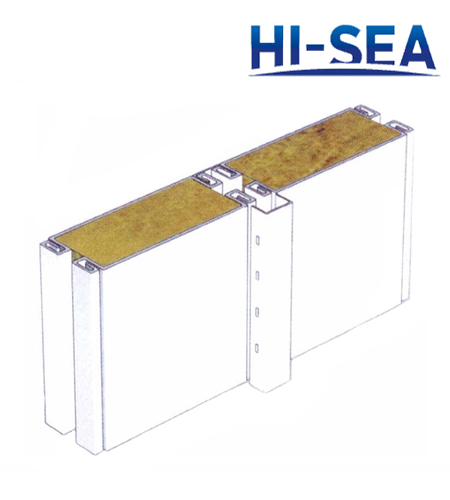

Compared with the type A composite rock wool galvanized steel panel, this type C rock wool wall panel differs in structure. Every two pieces of adjacent strips are connected together by insertion strips. The structure makes it convenient and efficient to install and uninstall. If you want to replace one piece of the panel, you just need to remove the insertion strips then you can take out that piece of panel. The fire resistant rating of this rock wool wall panel we supply is A-60, B-15 and B-0. Four models of this type C marine rock wool wall panel in different dimensions are available for your selection. Certificates like CCS, BV, and DNV can be offered according to customers¡¯ need.

Features:

1. Ship composite rock wool wall panel

2. Fire protecting rating: A-60, B-15, B-0

3. Model: B100C, B50C, B30C, B25C

4. Thickness: 100mm, 50mm, 30mm, 25mm

5. Normal width: 550mm

6. Length is customized, (max. 2500mm)

7. Certificates: ABS, CCS, BV, DNV, NK, etc.

8. OEM service available

Specifications:

Model

B100C

B50C

B30C

B25C

Fire protecting rating

A-60

B-15

B-15

B-0

Weight

24.8kg/©O

16.1kg/©O

13.7kg/©O

12.8kg/©O

Sound reduction

32 dB(A)

33 dB(A)

31 dB(A)

32dB(A)

Thermal transmittance

0.33Kcal/©O¡¤h¡æ

0.58Kcal/©O¡¤h¡æ

0.93 Kcal/©O¡¤h¡æ

1.06 Kcal/©O¡¤h¡æ

Dimension

100/50/30/25mm(t)¡Á 550mm(w)¡Á required Length(max. 3500mm)

Surface finish

PVC film (150¦Ì, low flame spread) or galvanized steel sheet

Core material

Rock wool 150kg/m3

Tolerances

Width(-1,0), Height ¡À3, Thickness(-1,0)

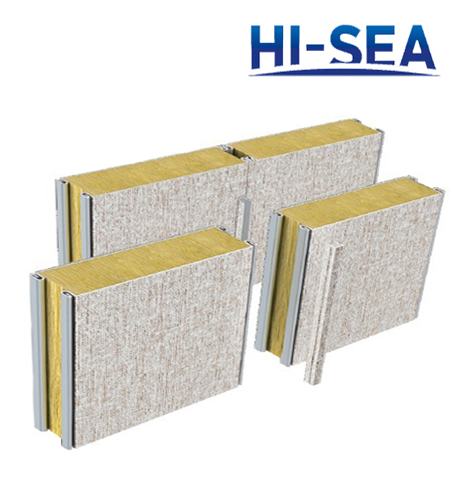

Product displaying: Type C Composite Rock Wool Wall Panel

Type C Composite Rock Wool Wall Board

Type C Composite Rock Wool Wall Panel

Marine Type C Composite Rock Wool Wall Panel
