Type M Composite Rock Wool Wall Panel

Type M Composite Rock Wool Wall Panel

This is the type M composite rock wool wall panel. The surface of it is made of PVC film or galvanized steel sheet, and the core is rock wool. This marine wall panel is fire resistant and the fire protecting is B-15. It can be used in the passenger room, movie room and meeting room of vessels. We can supply four models of this type wall panel. Each model has different dimension, so you can choose freely. If you can find you want, please do not hesitate to tell us and we can customize the product according to your requirement.

Features:

1. Marine composite rock wool wall panel

2. Model: B25M, B50M, B25M(¢ò), B50M(¢ò)

3. Fire protecting rating: B-15

4. Material: PVC film or galvanized steel sheet, rock wool

5. Thickness: 25mm, 50mm

6. Width: 550mm

7. Length is customized (max. 3500mm)

8. OEM service available

Specifications:

Model

B25M

B25M(¢ò)

B50M

B50M(¢ò)

Fire rating

B-15

B-15

B-15

B-15/B-30

Weight

15.0kg/m2

13.6kg/m2

18.6kg/m2

17.7kg/m2

Sound reduction

31dB

30dB

33dB

32dB

Thermal transmittance

1.13Kcal/m2h¡¤¡ãC

1.13Kcal/m2h¡¤¡ãC

0.58Kcal/m2h¡¤¡ãC

0.58Kcal/m2h¡¤¡ãC

Dimension

25/50mm( t )¡Á550mm( w )¡Álength (max.3500mm)

Surface finish

PVC film(150¦Ì,low flame spread) or galvanized steel sheet

Core material

Rock wool 150kg/m3

Tolerances

Width(-1,0), Height ¡À3, Thickness(-1,0)

Product displaying:

Type M Composite Rock Wool Wall Panel

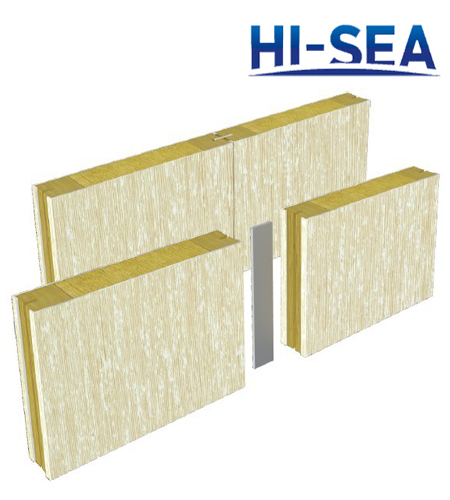

Type M Composite Rock Wool Wall Board---Type M(II)

Type M Composite Rock Wool Wall Panel

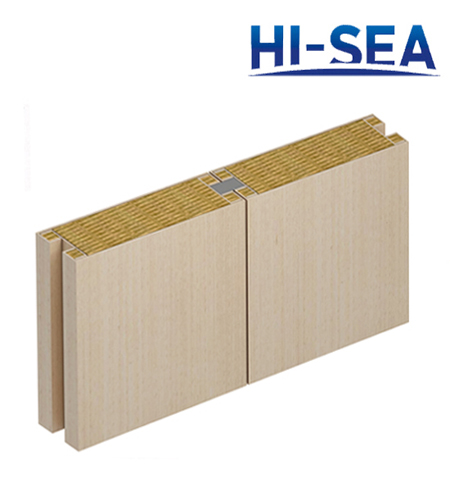

Marine Type M Composite Rock Wool Wall Board
