Type C Composite Rock Wool Acoustic Wall Panel

[Search Related Products]

Type C Composite Rock Wool Acoustic Wall Panel

Type C Composite Rock Wool Acoustic Wall Panel

This product is the type C composite rock wool ship wall panel. It is designed with high sound reduction property, so it is called marine acoustic wall pane. The product is made of PVC film or galvanized steel sheet on the surface and rock wool in the core. It is fire insulating and the fire protecting rating of it is B-15. Therefore, it is frequently used in the cabin, meeting rooms, and movie rooms of various vessels. This type acoustic wall panel is approved by certificates CCS, ABS, BV, NK, etc. We can offer the specific certificate according clients¡¯ requirement.

Features:

1. Marine composite rock wool acoustic wall panel

2. Fire protecting rating: B-15

3. Model: B50CGa

4. Sound reduction: 45dB

5. Thickness: 50mm

6. Normal width: 550mm

7. Required length (max. 3500mm)

8. Certificates: ABS, BV, KR, CCS, etc.

Specifications:

Model

B50CGa

Fire protecting rating

B-15

Core material

Rock wool 150kg/m3

Surface finish

PVC film(150¦Ì,low flame spread) or galvanized steel sheet

Weight

22.3kg/m2

Sound reduction

45dB

Tolerances

Thickness(0, -1), Width(0, -1), Length¡À3

Thermal transmittance

0.55Kcal/m2h¡¤¡ãC

Dimension

50mm( t )¡Á550mm( w )¡Álength (max.3500mm)

Product showing:

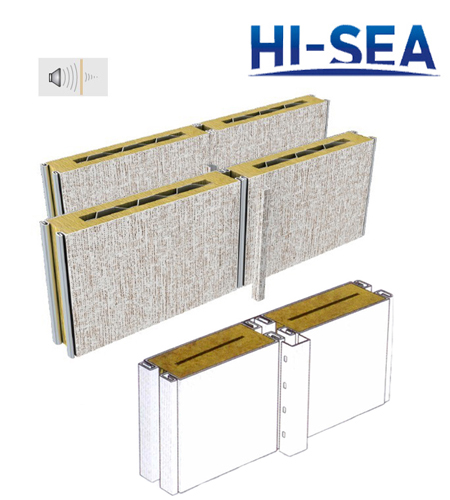

Type C Composite Rock Wool Acoustic Wall Panel

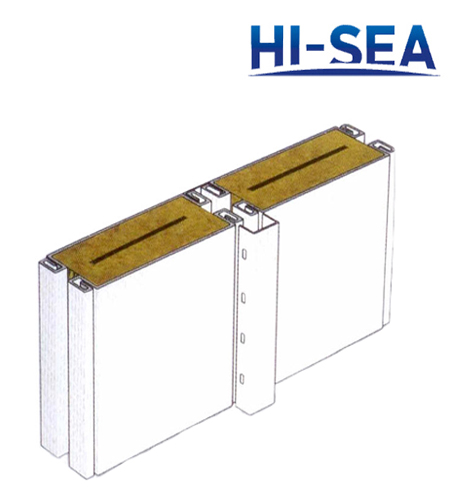

Type C Composite Rock Wool Acoustic Wall Board

Type C Composite Rock Wool Acoustic Wall Panel

Type C Composite Rock Wool High Sound Reduction Wall Panel
