Type A Composite Rock Wool Acoustic Wall Panel

[Search Related Products]
Type A Composite Rock Wool Acoustic Wall Panel

Type A Composite Rock Wool Acoustic Wall Panel

As an important marine decorative material, composite rock wool is widely used in the cabin, deck house and bathroom of various vessels for the decoration of wall and ceiling. This product is the type A composite rock wool acoustic wall panel. The surface of it is made of PVC film or galvanized steel sheet and the core is rock wool. Patterns and colors of the PVC film can be decided by clients. This type A wall panel is designed with excellent sound insulation and heat insulation prosperities. Certificates about it are CCS, BV, KR, NK, etc.

Features:

1. Marine composite rock wool acoustic wall panel

2. Model: B50AGa

3. Fire resistant rating: B-15

4. Sound reduction: 46dB(A)

5. Surface finish: PVC film or galvanized steel sheet

6. Core material: composite rock wool

7. Dimension: 50mm( t )”Į550mm( w )”Įlength (max.3500mm), length is customized

8. Certificates: CCS, DNV, NK, RINA, etc.

9. OEM service available

Specifications:

Model

B50AGa

Fire protecting rating

B-15

Weight

22.0kg/m2

Sound reduction

46dB(A)

Thermal transmittance

0.58Kcal/m2h”¤”ćC

Surface finish

PVC film(150¦Ģ,low flame spread) or galvanized steel sheet

Core material

Rock wool 150kg/m3

Thickness

50mm

Width

550mm

Length

Required length (max. 3500mm)

Dimension

50mm( t )”Į550mm( w )”Įlength (max.3500mm)

Tolerances

thickness(-1, 0), length”Ą3, width(-1, 0)

Product showing:

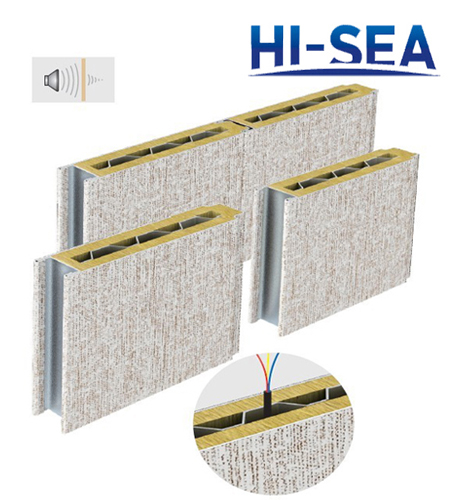

Type A Composite Rock Wool Acoustic Wall Panel

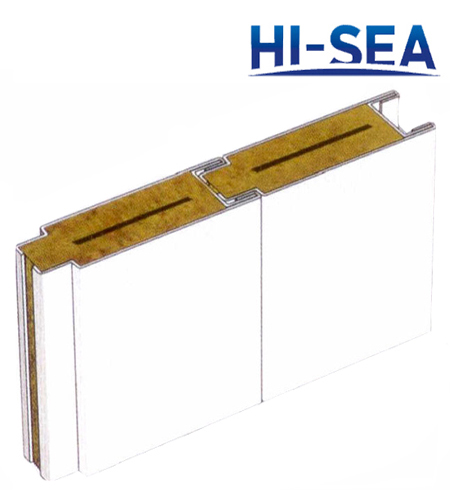

Type A Composite Rock Wool High Sound Reduction Wall Panel
