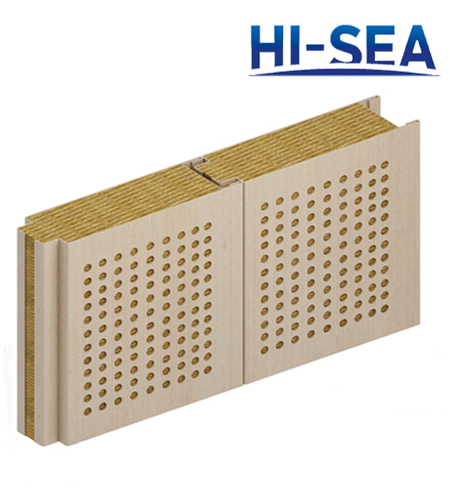

Composite Rock Wool Perforated Acoustic Wall Board

Composite Rock Wool Perforated Acoustic Wall Board

This marine composite rock wool perforated sound reduction panel is one of the main decorative materials for the wall of various vessels such as bulk carriers, containers, oil tankers, etc. Our marine wall panel is in accordance with the ISO standard IMO standard and kinds of Classification Society¡¯s requirement. In this way, ABS, CCS, BV, DNV, KR, etc are available according to customer¡¯s demand.

Features:

1. Ship rock wool sound absorbing wall panel

2. Type: type A and type C

3. Light weight, fire proof, sound proof, high fire rating

4. Fire protecting rating: B-15

5. Thickness: 30mm

6. Normal width: 550/600mm

7. Length is customized, (max. 3600mm)

8. Material: PVC film/galvanized steel sheet, rock wool

9. Certificates: CCS, BV, DNV, ABS, NK, RINA, etc.

Specifications:

Product name

Type A/C Composite Rock Wool Perforated Sound Reduction Wall Panel

Model

HS-PA30

HS-PC30

Fire protecting rating

B-15

B-15

Dimension

30mm Thickness¡Á550/600mm Width ¡Á Required Length(Max 3600mm)

Weight

14.8 kg/©O

14.8 kg/©O

Sound reduction

30dB(A)

30dB(A)

Thermal transmittance

0.86Kcal/©Oh¡¤¡æ

0.86Kcal/©Oh¡¤¡æ

Surface finish

PVC film (150¦Ì, low flame spread) or galvanized steel

Core material

Rock Wool

Rock Wool

Tolerances

Width(-1,0), Height ¡À3, Thickness(-1,0)

Product displaying:

Composite Rock Wool Perforated Acoustic Wall Board

Composite Rock Wool Perforated Acoustic Wall Panel
