Type C Steel Sheet Composite Aluminum Honeycomb Wall Panel

Type C Steel Sheet Composite Aluminum Honeycomb Wall Panel

Made with composite aluminum honeycomb, this product is used as the wall panel of cabins, deckhouse and other room on various vessels. There are four types for the composite aluminum honeycomb wall panel. This is the type C with galvanized steel sheet on the surface. And its core material is aluminum honeycomb. This aluminum honeycomb wall panel for decoration is fire resistant and there are three fire protecting ratings: B-15, B-0, and C. Certificates like CCS, BV, and DNV can be offered according to customer¡¯s request.

Features:

1. Surface material: PVC/PET film laminated(low-flame spread) or galvanized steel sheet,

2. Core material: aluminum honeycomb

3. Fire proof rating: B-15, B-0, C

4. Width: 550/600mm

5. Thickness: 50mm, 30mm, 25mm, 20mm, 15mm

6. Customized length (max. 3600mm)

7. Certificates: CCS, BV, DNV, KR, NK, RINA, etc.

Specification:

Model

B50C

B30C

B25C

B20C

B15C

Fire proof rating

B-15

B-0

B-0

C

C

Thickness

50mm

30mm

25mm

20mm

15mm

Dimension

550/600mm width¡Á 50/30/25/20/15mm thickness ¡Álength (max. 3600mm)

Sound reduction

33 dB(A)

30 dB(A)

29 dB(A)

27 dB(A)

25 dB(A)

Weight

17.8 kg/©O

12.1 kg/©O

11.4 kg/©O

11.22 kg/©O

11.04 kg/©O

Thermal transmittance

2.25 kcal/©O¡¤h¡æ

3.25 kcal/©O¡¤h¡æ

3.35 kcal/©O¡¤h¡æ

3.35kcal/©O¡¤h¡æ

3.35 kcal/©O¡¤h¡æ

Tolerances

Width(-1,0), Thickness(-1,0), Length ¡À3,

Surface finish

PVC/PET film laminated (low flame-spread) or galvanized steel sheet

Core material

Aluminum honeycomb

Product displaying:

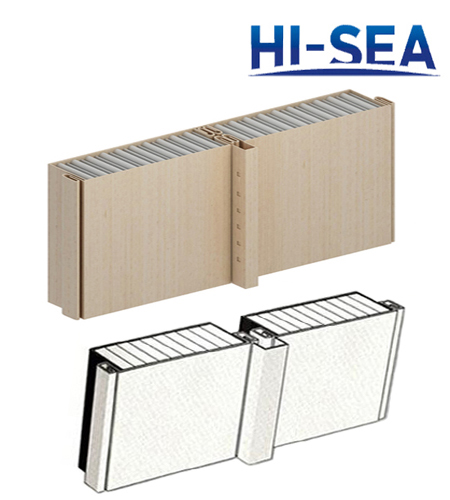

Type C Steel Sheet Composite Aluminum Honeycomb Wall Panel

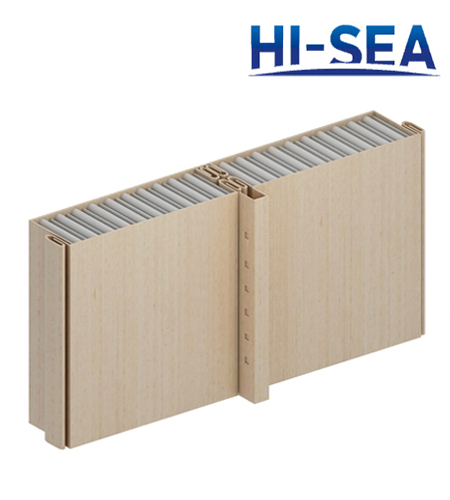

Steel Sheet Composite Aluminum Honeycomb Wall Panel
