Type M Composite Rock Wool Wall Panel with Cable Slot

[Search Related Products]
Type M Composite Rock Wool Wall Panel with Cable Slot

Type M Composite Rock Wool Wall Panel with Cable Slot

This wall panel is designed with cable slot. It is type M ship composite rock wool wall board. Our company can supply two models of this type wall panel. They differ in fire protecting rating and weight. One is B-15 and 16.7kg/m2, while the other is B-15/B-30 and 16.4kg/m2. This type marine wall panel is made of PVC film/galvanized steel sheet on the surface and rock wool in the core. With the properties of fire resistance and heat insulation, this product is widely used in the cabin, meeting room, and recreational room on the ships.

Features:

1. Ship rock wool wall panel

2. Model: B50MD, B50MD(¢ò)

3. Fire protecting rating: B15, B-30

4. Surface finish: PVC film or galvanized steel sheet

5. Core material: rock wool

6. Thickness: 50mm

7. Normal width: 550mm

8. Required length, max. 3500mm

9. Certificates: ABS, CE, BV, KR, CCS, etc.

10. OEM service available

Specifications:

Model

B50MD

B50MD(¢ò)

Fire resistant rating

B-15

B-15/B-30

Weight

16.7kg/m2

16.4kg/m2

Sound reduction

-dB

-dB

Thermal transmittance

0.55Kcal/m2h¡¤¡ãC

Core material

Rock wool 150kg/m3

Surface finish

PVC film(150¦Ì,low flame spread) or galvanized steel

Dimension

50mm( t )¡Á550mm( w )¡Álength (max.3500mm)

Tolerances

thickness(-1, 0), length¡À3, width(-1, 0)

Product displaying:

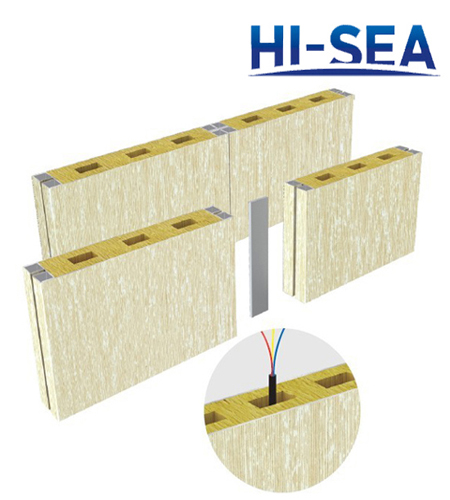

Type M Composite Rock Wool Wall Panel with Cable Slot

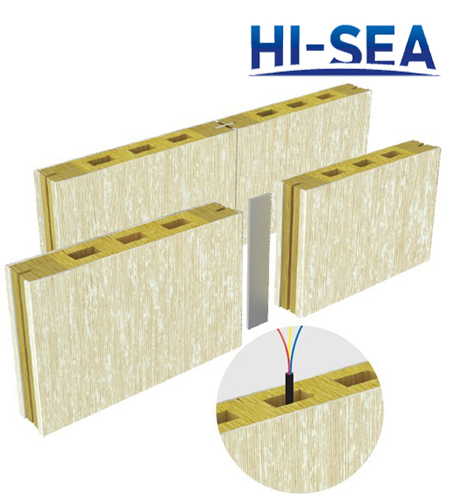

Type M Composite Rock Wool Wall Board with Cable Slot

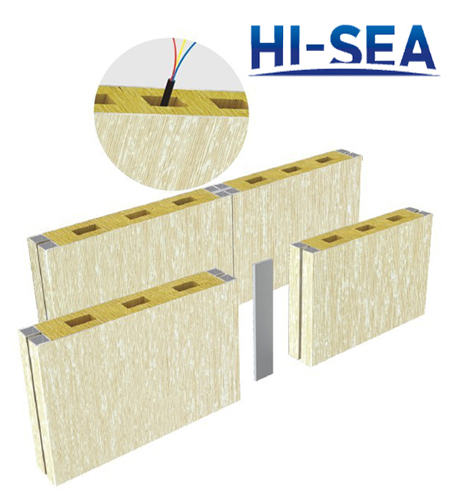

Type M Composite Rock Wool Wall Panel with Cable Slot

Marrine Type M Composite Rock Wool Wall Panel with Cable Slot
