400*180mm Cold Formed Steel Sheet Pile
[Search Related Products]
400*180mm Cold Formed Steel Sheet Pile
Cold formed steel sheet pile adopts thin steel. The production of it is lower and the price is cheaper. According to the actual situation of engineering, the sheet pile which is most ecmonic with reasonable cross section can be chosen to realise the design optimization. And it has wide range of section modulus, suitable for various type of construction purpose.
Product Details:
1. Height: 100-180mm
2.Thickness: 10-14mm
3. It is designed and produced according to European standard
4. The severe corrosion parts have been thickened
5. Special specification can be made according to customers requirements.
Attention:
1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.
Specification:
Type |
Width |
Height |
Thickness |
Section Area |
Weight |
mm |
mm |
mm |
cm²/m |
kg/m |
|
U4-1 |
400 |
100 |
10 |
72.2 |
56.68 |
U4-2 |
400 |
150 |
10 |
79.9 |
62.72 |
U4-3 |
400 |
180 |
10 |
84.5 |
66.33 |
U4-4 |
400 |
100 |
12 |
85.4 |
67.07 |
U4-5 |
400 |
150 |
12 |
94.6 |
74.23 |
U4-6 |
400 |
180 |
12 |
100.2 |
78.66 |
U4-7 |
400 |
150 |
14 |
111.2 |
87.26 |
U4-8 |
400 |
180 |
14 |
117.6 |
92.32 |
400*180mm Cold Formed Steel Sheet Pile | |

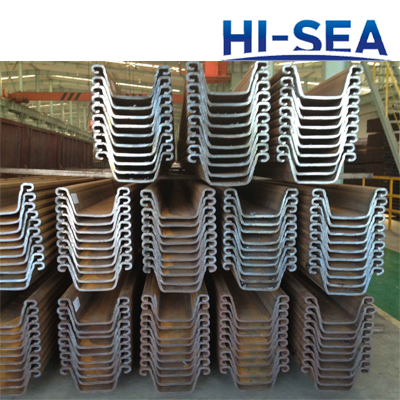

Cold Formed Steel Sheet Pile |

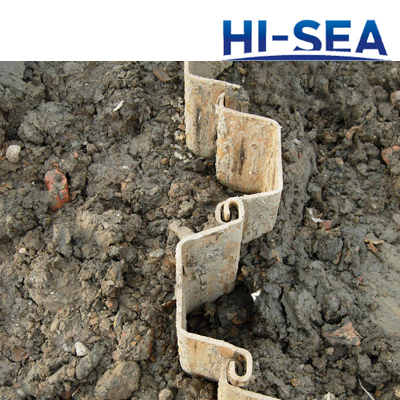

Cold Formed Steel Sheet Pile in Use |
