Japanese Standard U Shape Sheet Pile
Japanese standard U shape sheet pile is a kind of high efficient energy saving and environmental protection construction material.And its character greatly improves the section modulus and flexural stiffness to ensure sectional mechanics can be played fully.Special specification can be made according to customers requirements.
Product Details:
1. Width: 400-600mm2. Height: 85-210mm
3. Thickness: 8-18mm
4. Standard: JISA 5523/ JISA 5528
5. Good corrosion resistance performance.
6. The use of high tensile steel guarantee the performance of sheet pile
Attention:1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.
Specification:
Type |
Width |
Height |
Thickness |
Section Area |
Weight |
mm |
mm |
mm |
cm²/m |
kg/m |
|
U-¢ñ |
400 |
85 |
8 |
45.21 |
35.5 |
U-¢ò |
400 |
100 |
10.5 |
61.18 |
48 |
U-¢ó |
400 |
125 |
13 |
76.42 |
60 |
U-¢óA |
400 |
150 |
13.1 |
74.4 |
58.4 |
U-¢ô |
400 |
170 |
15.5 |
96.99 |
76.1 |
U-¢õL |
500 |
200 |
24.3 |
133.8 |
105 |
U-¢öL |
500 |
225 |
27.6 |
153 |
120 |
U-¢òW |
600 |
130 |
10.3 |
78.7 |
61.8 |
U-¢óW |
600 |
180 |
13.4 |
103.9 |
81.6 |
U-¢ôW |
600 |
210 |
18 |
135.3 |
106 |

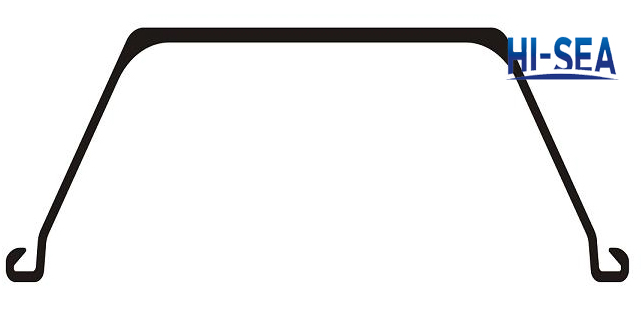

Sketch of the Japanese standard U shape sheet pile
