European Standard U Shape Sheet Pile
European standard U shape sheet pile have been used widely in the bridge cofferdam, large pipe laying, temporary ditch excavation to retaining soil, water, sand and so on. It is used extensively in both permanent and temporary works thoughout the world. And it has wide range of section modulus, suitable for various type of construction purpose.
Product Details:
1. Cross section structure design is reasonable, which make the ratio of setion modulus and weight increased.2. Designed and produced according to European standard, the symmetric structure make it can be used repeatedly.
3. The use of high tensile steel guarantee the performance of sheet pile
4. The design and production cycle is short, the performance of it can be customized.
Attention:1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.
Specification:
Type |
Width |
Height |
Thickness |
Section Area |
Weight |
mm |
mm |
mm |
cm²/m |
kg/m |
|
U7-750 |
750 |
320 |
5 |
71.8 |
42.3 |
U7-900 |
900 |
320 |
5 |
68.2 |
48.2 |
U7-850 |
850 |
320 |
5 |
69.4 |
46.3 |
U8-750 |
750 |
320 |
6 |
86.1 |
50.7 |
U8-850 |
850 |
320 |
6 |
83 |
55.4 |
U8-900 |
900 |
320 |
6 |
81.8 |
57.8 |
U9-750 |
750 |
320 |
7 |
100 |
58.9 |
U9-850 |
850 |
320 |
7 |
96.5 |
64.4 |
U9-600 |
600 |
320 |
7 |
108.3 |
50.7 |
U9-900 |
900 |
320 |
7 |
95 |
67.1 |
U10-700 |
700 |
310 |
9 |
129.6 |
71.2 |

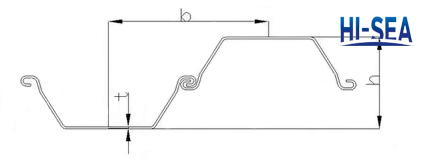

Sketch of the European standard U shape sheet pile
