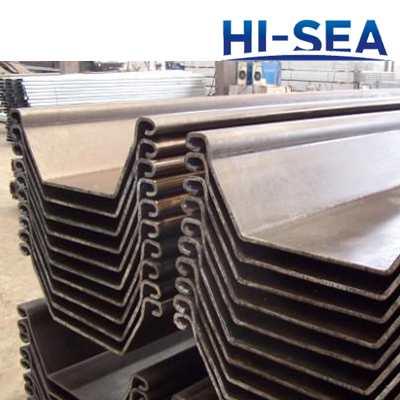

SY295 SY390 Steel Sheet Pile

SY295 SY390 Steel Sheet Pile

SY295 SY390 steel sheet pile has safe and reliable structure, efficient waterproof performance and environment protection. It has been used widely in the bridge cofferdam, large pipe laying, temporary ditch excavation to retaining soil, water, sand and so on. It is used extensively in both permanent and temporary works thoughout the world.

Product Details:

1. Width: 400-600mm

2. Height: 100-210mm

3. Thickness: 10.3-27.6mm

4. High strength, light weight, good waterproof function.

5. Shortening the construction period and has good durability

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.

2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

Specification:

Type

Width

Height

Thickness

Section Area

Weight

mm

mm

mm

cm²/m

kg/m

U-¢ò

400

100

10.5

61.18

48

U-¢ó

400

125

13

76.42

60

U-¢ô

400

170

15.5

96.99

76.1

U-¢õL

500

200

24.3

133.8

105

U-¢öL

500

225

27.6

153

120

U-¢òW

600

130

10.3

78.7

61.8

U-¢óW

600

180

13.4

103.9

81.6

U-¢ôW

600

210

18

135.3

106
