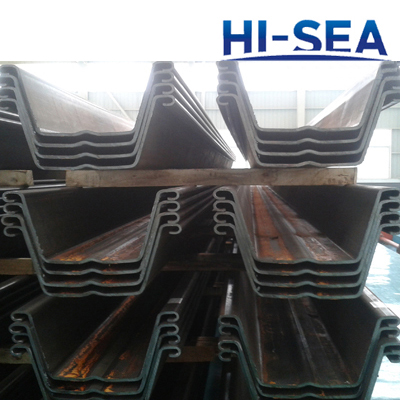

750*270mm Cold Formed Steel Sheet Pile

750*270mm Cold Formed Steel Sheet Pile

U-shaped cold formed steel sheet pile is mainly used in the temporary building structure. The steel sheet pile produce by our company can be used repeatedly because of its high durability and the excellent penetrability of cross section. We have solved the deformation and breakage problem of cold formed steel sheet pile in use, and greatly improce its service life.

Product details:

1. Thickness: 9-12mm

2. Section modulus: 3031-2302cm³

3. Weight: 165-124 kg/m

4. Cross section area: 211-258 cm²

5. High cost-effective

6. Strong bearing capacity

7. Good waterproof performance

8. Large width save the hoisting and driving time effectively

9. Special specification can be made according to customers requirements

Specification:

Model

Width

Height

Thickness

Cross Section Area

Section Modulus

Weight

mm

mm

mm

cm²

cm³

kg/m

U750*270*9

750

270

9

158.05

2302

124.07

U750*270*10

750

270

10

175.61

2547

137.85

U750*270*11

750

270

11

193.17

2790

151.64

U750*270*12

750

270

12

210.73

3031

165.43
