Cold FormedSteel Sheet Pile:
Hi-Sea Marine Group could design and manufacture kinds of steel sheet piles, including u type series, Z type series, L/S type series, Corner piles, Box pile, and many combined sheet piles. If you have any requirement, please don¡¯t hesitate to contact us. we are chongqing Hi-Sea.
According to the actual situation of engineering, the sheet pile which is most ecmonic with reasonable cross section can be chosen to realise the design optimization. Comparing with the hot rolling steel sheet pile that has same performance, it can save materials of 10-15%, and greatly reduce the construction cost.
Application:
Cofferdam(land); Cofferdam(Water); Low embankment; Deep foundation pit; Shallow underground excavation; Light-duty Sea Use; Heavy-duty Sea Use; Underground water quality control. etc.
Specification:
steel sheet piles |
||||||||
Type |
Width |
Height |
Thickness |
Weight Per pile |
Weight Per wall |
Moment of inertia |
Section modulus |
|
mm |
mm |
mm |
Kg/m |
Kg/ m2 |
Cm4/m |
Cm3/m |
||
HSU7 |
750 |
320 |
5 |
42 |
56 |
10725 |
670 |
|
HSU8 |
750 |
320 |
6 |
51 |
68.1 |
13169 |
823 |
|
HSU9 |
750 |
320 |
7 |
59.7 |
79.6 |
15251 |
953 |
|
HSU10-450 |
450 |
360 |
8 |
52.5 |
116.7 |
18268 |
1015 |
|
HSU11-450 |
450 |
360 |
9 |
58.6 |
130.2 |
20375 |
1132 |
|
HSU12-450 |
450 |
360 |
10 |
64.7 |
143.8 |
22444 |
1247 |
|
HSU11-575 |
575 |
360 |
8 |
60.4 |
105.1 |
19685 |
1094 |
|
HSU12-575 |
575 |
360 |
9 |
67.5 |
117.4 |
21973 |
1221 |
|
HSU13-575 |
575 |
360 |
10 |
74.5 |
129.5 |
24224 |
1346 |
|
HSU11-600 |
600 |
360 |
8 |
61.9 |
103.2 |
19897 |
1105 |
|
HSU12-600 |
600 |
360 |
9 |
69.5 |
115.8 |
22213 |
1234 |
|
HSU13-600 |
600 |
360 |
10 |
76.5 |
127.5 |
24491 |
1361 |
|
HSU16 |
650 |
480 |
8 |
71.3 |
109.6 |
39864 |
1661 |
|
HSU 18 |
650 |
480 |
9 |
79.5 |
122.3 |
44521 |
1855 |
|
HSU20 |
650 |
540 |
8 |
78.1 |
120.2 |
56002 |
2074 |
|
HSU23 |
650 |
540 |
9 |
87.3 |
133 |
61084 |
2318 |
|
HSU26 |
650 |
540 |
10 |
96.2 |
146.9 |
69093 |
2559 |
|
HSU30-700 |
700 |
558 |
11 |
119.3 |
170.5 |
83139 |
2980 |
|
HSU32-700 |
700 |
560 |
12 |
129.8 |
185.4 |
90880 |
3246 |
|
HSU35-700 |
700 |
562 |
13 |
140.2 |
200.3 |
98652 |
3511 |
|
HSU36-700 |
700 |
558 |
14 |
156.2 |
223.2 |
102145 |
3661 |
|
HSU39-700 |
700 |
560 |
15 |
166.9 |
238.5 |
109655 |
3916 |
|
HSU41-700 |
700 |
562 |
16 |
177.6 |
253.7 |
117194 |
4170 |
|
HSU 32 |
750 |
598 |
11 |
127.1 |
169.5 |
97362 |
3265 |
|
HSU 35 |
750 |
600 |
12 |
138.3 |
184.4 |
106416 |
3547 |
|
HSU 38 |
750 |
602 |
13 |
149.4 |
199.2 |
115505 |
3837 |
|
HSU 40 |
750 |
598 |
14 |
166.1 |
221.5 |
119918 |
4011 |
|
HSU 43 |
750 |
600 |
15 |
177.5 |
236.7 |
128724 |
4291 |
|
HSU 45 |
750 |
602 |
16 |
188.9 |
251.8 |
137561 |
4570 |
Optional Steel Grades:
Model |
Mechanical Feature |
|||
Yield(Mpa) |
Tensile(Mpa) |
Elongation(%) |
Impact Energy |
|
Q235B |
235 |
375-460 |
38 |
27 |
Q345B |
¡Ý345 |
470-630 |
¡Ý21 |
¡Ý34 |
Q345C |
¡Ý345 |
470-630 |
¡Ý21 |
¡Ý34 |
MDB350 |
¡Ý350 |
470-630 |
¡Ý21 |
¡Ý60 |
MDB380 |
¡Ý380 |
480-640 |
¡Ý21 |
¡Ý60 |
S355J0 |
¡Ý355 |
470-630 |
¡Ý22 |
¡Ý27 |
St52-3 |
¡Ý355 |
490-630 |
¡Ý22 |
¡Ý27 |
SM490A |
¡Ý325 |
490-610 |
¡Ý20 |
¡¡ |
SM490B |
¡Ý325 |
490-610 |
¡Ý20 |
¡Ý27 |
SS490 |
¡Ý285 |
490-610 |
¡Ý19 |
¡¡ |

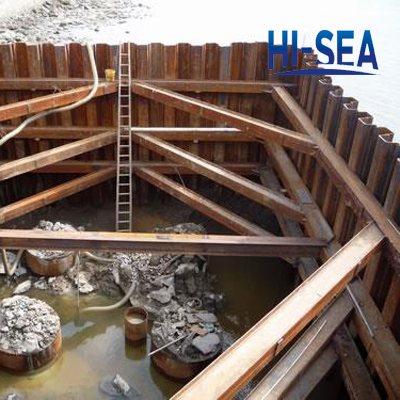

Application of Cold Formed Steel Sheet Pile
