Hollow Section Steel Pile
The diameters of hollow section steel pile we can provide is from914mm to 3000mm. They are available in numerous European and US steel grades. The hollow setion steel pile is the mian retaining elements of the combined wall, carrying horizontal loads from soils and water pressure and vertical foundation loads.
Product details:
1. Size: 914-3000mm
2. Thickness: 10-25mm
3. Steel Grade: Q235, Q345, Q420, Q195
4. Surface: Bared or Oiled
5. Tolerance of OD:¡À0.5mm
6. API, ISO, SGS
7. Strong bearing capacity
8. Good waterproof performance
9. Special specification can be made according to customers requirements
Specification:
Diameter |
Thickness |
Section Modulus |
Weight |
mm |
mm |
cm³ |
kg/m |
914 |
10 |
3541 |
173.9 |
1016 |
12 |
4635 |
198 |
1219 |
14 |
7546 |
229 |
1422 |
16 |
9298 |
261.7 |
1524 |
16 |
10243 |
266.7 |
1626 |
18 |
12531 |
297.6 |
1829 |
18 |
14771 |
307 |
2032 |
20 |
18944 |
345.2 |
2545 |
21 |
16975 |
379.9 |
3000 |
21 |
33630 |
394.8 |
Hollow Section Sheet Pile | |

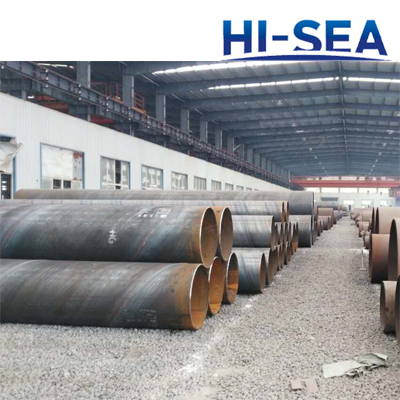

Hollow Section Sheet Pile-A |

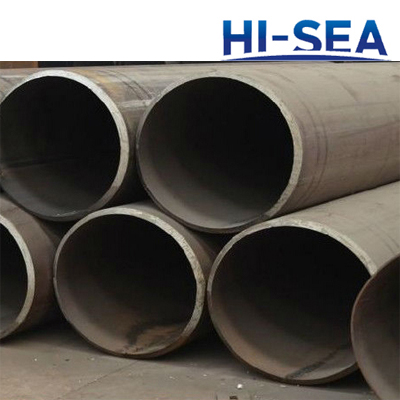

Hollow Section Sheet Pile-B |
