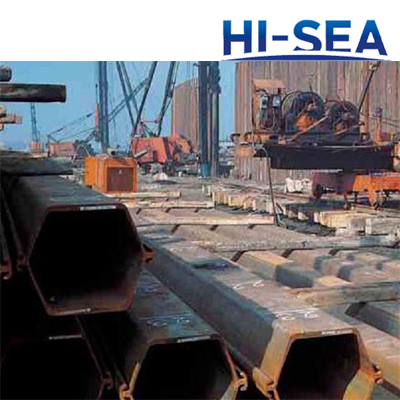

Box Type Sheet Pile

Box Type Sheet Pile

Box type sheet pile is a kind of new combined waterproof steel sheet pile. It is consisted of two U-shaped hot rolled sheet piles, two side panels and a baseplate. It greatly reduce the product cost and shorten the construction period. Using the traditional construction method, the method is simple with high degree of mechanization.

Product Details:

1. Perimeter: 230-245 cm

2. Section area: 198-288 cm²

3. Large width resulting in high installation performance

4. High tensile strength

5. Extremely competitive section modulus

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.

2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

Specification:

Type

b

h

Perimeter

Section Area

Mass

mm

mm

cm

cm²

kg/m

B-1 14-2

750

451

230

198

155.8

B-1 16-2

750

454

231

220

172.5

B-1 17-2

750

455

231

227

178.1

B-1 18-2

750

486

239

225

177

B-1 20-2

750

489

240

247

193.8

B-1 21-2

750

490

240

254

199.3

B-1 23-2

750

492

244

260

204.2

B-1 25-2

750

495

245

281

220.8

B-1 26-2

750

496

245

288

226.4

Box Type Sheet Pile

Sketch of the box type sheet pile

Box Type Sheet Pile
