Trench Piles
Trench pile is a lightweight trough plate that using the simple method to connect together. It is designed for quick reuse of low strength requirement. The design of shape mamke the thin section can be used repeatedly, and to ensure the end excavating operation save, clean and timely.
Product Details:
1. Width: 600mm-880mm
2. Height: 78-156mm
3. Thickness: 4-8mm
4. High cost-effective
5. Easy to use
6. Applicable to the shallow underground excavation
Attention:
1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.
Specification:
Type | Width | Height | Thickness | Weight | Section Modulus |
mm | mm | mm | kg/m | cm³/m | |
T1-1 | 600 | 78 | 6 | 37.7 | 169 |
T1-2 | 650 | 80 | 6 | 40.5 | 190 |
T2-1 | 750 | 95 | 6 | 42.4 | 202 |
T2-2 | 600 | 80 | 8 | 50.2 | 219 |
T2-3 | 880 | 152 | 4 | 41.1 | 231 |
T2-4 | 750 | 96 | 7 | 49.6 | 234 |
T2-5 | 650 | 82 | 8 | 53.9 | 247 |
T2-6 | 750 | 97 | 8 | 56.8 | 266 |
T3-1 | 880 | 154 | 6 | 61.7 | 342 |
T4-1 | 880 | 156 | 8 | 82.3 | 452 |

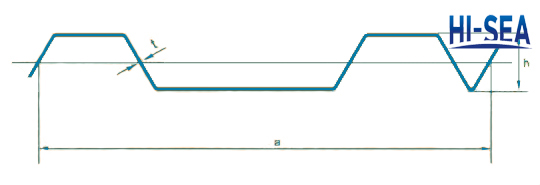

Sketch of the trench piles
