OZ Type Steel Sheet Pile
OZ type steel sheet pile is a combined system pile. It has a soil-retaining and load transferrring. Depending on the structural combination and steel grade adopted, bending moments up to 9000KNm/m can ba safely resisted. It is high efficient energy saving and environmental protection construction.
Product Details:
1. Diameter: 914-2997mm
2. Thickness: 10-25mm
3. Flexible design, relatively high section modulus and mass ratio
4. The construction of it are environmental protection
5. Special specification can be made according to customers requirements
Attention:
1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.
Specification:
Diameter |
Thickness |
b |
Mass |
mm |
mm |
m |
kg/m² |
914 |
10 |
2.23 |
175 |
914 |
12 |
2.23 |
194 |
914 |
14 |
2.23 |
214 |
1016 |
12 |
2.34 |
199 |
1016 |
14 |
2.34 |
220 |
1016 |
16 |
2.34 |
240 |
1219 |
14 |
2.54 |
230 |
1219 |
16 |
2.54 |
253 |
1219 |
18 |
2.54 |
276 |
1422 |
16 |
2.74 |
263 |
1422 |
18 |
2.74 |
288 |
1422 |
20 |
2.74 |
313 |
1524 |
16 |
2.84 |
268 |
1524 |
18 |
2.84 |
294 |
1524 |
20 |
2.84 |
320 |
1626 |
18 |
2.95 |
299 |
1626 |
20 |
2.95 |
326 |
1626 |
22 |
2.95 |
352 |
1829 |
18 |
3.15 |
308 |
1829 |
20 |
3.15 |
336 |
1829 |
22 |
3.15 |
364 |
2032 |
20 |
3.35 |
346 |
2032 |
22 |
3.35 |
375 |
2032 |
24 |
3.35 |
404 |
2540 |
21 |
3.86 |
381 |
2540 |
23 |
3.86 |
413 |
2540 |
25 |
3.86 |
445 |
2997 |
221 |
4.32 |
396 |
2997 |
23 |
4.32 |
429 |
2997 |
25 |
4.32 |
463 |

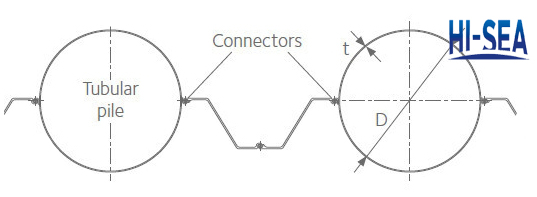

Sketch of the OZ type steel sheet pile
