U Type Cold Formed Sheet Pile

U Type Cold Formed Sheet Pile

This kind of steel sheet pile is formed by cold bending equipment with continuous rolling. The side lock of it can be connected together to form a steel structure sheet pile wall. Cold formed steel sheet pile adopts thin steel. The production of it is lower and the price is cheaper.

Product Details:

1. It is designed and produced according to European standard

2. The structure of it is symmetrical, which make it can be used repeatedly

3. Special specification can be made according to customers requirements.

4. The design and production cycle is short, the performance of it can be customized.

5. Good corrosion resistance performance.

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.

2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

Specification:

Model

Width

Height

Thickness

Sectional Area

Weight

W(mm)

H(mm)

T(mm)

cm²/m

kg/m

HSU5-1

600

150

9.5

119.75

56.4

HSU5-2

600

150

10

141.6

66.7

HSU6-1

600

280

6

89.6

42.2

HSU7-1

600

300

6

93.42

44

HSU7-2

600

340

6

98.09

46.2

HSU7-3

600

380

6

99.58

46.9

HSU8-1

600

340

6.5

103.34

48.7

HSU8-2

600

325

7

109.98

51.8

HSU8-3

600

355

7

113

53.4

HSU8-4

750

320

6

87.1

51.3

U Type Cold Formed Sheet Pile

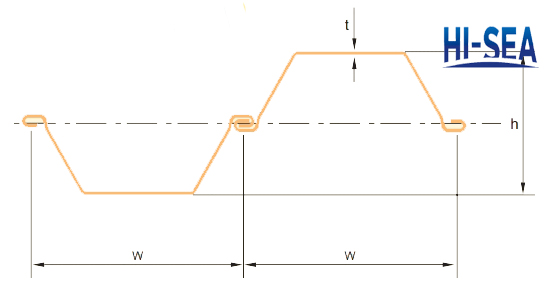

Sketch of the U type cold formed steel sheet pile

U Type Cold Formed Sheet Pile

U Type Cold Formed Sheet Pile
