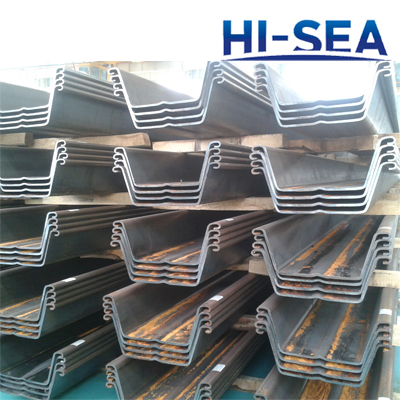

W Type Steel Sheet Pile
W type steel sheet pile has been used widely in the bridge cofferdam, large pipe laying, temporary ditch excavation to retaining soil, water, sand and so on. According to the actual situation of engineering, the sheet pile which is most ecmonic with reasonable cross section can be chosen to realise the design optimization.
Product Details:
1. Thickness: 6-16mm
2. Material: Q235,A295,Q345,Q420
3. Large width make installation convenient
4. Good corrosion resistance performance.
5. Special specification can be made according to customers requirements
Attention:
1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.
Specification:
Type |
Width |
Height |
Thickness |
Section Area |
Weight |
mm |
mm |
mm |
cm²/m |
kg/m |
|
W10-450 |
450 |
360 |
8 |
148.6 |
52.5 |
W11-450 |
450 |
360 |
9 |
165.9 |
58.6 |
W12-450 |
450 |
360 |
10 |
182.9 |
64.7 |
W11-575 |
575 |
360 |
8 |
133.8 |
60.4 |
W12-575 |
575 |
360 |
9 |
149.5 |
67.5 |
W13-575 |
575 |
360 |
10 |
165 |
74.5 |
W11-600 |
600 |
360 |
8 |
131.4 |
61.9 |
W12-600 |
600 |
360 |
9 |
147.3 |
69.5 |
W13-600 |
600 |
360 |
10 |
162.4 |
76.5 |

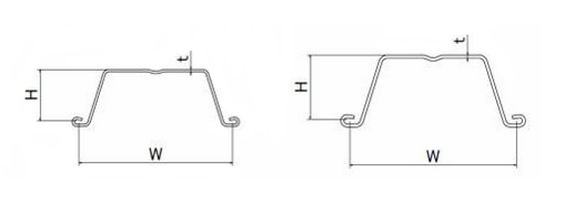

Sketch of the W type steel sheet pile
W Type Steel Sheet Pile
