U Shape Steel Sheet Pile for Embankment
U shape steel sheet pile for embankment has reasonable structure design, and the forming process in advanced, which make the section modulus and the ratio of weight increasing continually. It has rich specifications. According to the actual situation of engineering, the sheet pile which is most ecmonic with reasonable cross section can be chosen to realise the design optimization.
Product Details:
1. It is designed and produced according to European standard
2. The structure of it is symmetrical, which make it can be used repeatedly
3. Higher moment of inertia reduce structural deformation
4. The severe corrosion parts have been thickened
5. Special specification can be made according to customers requirements.
Attention:
1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.
Specification:
Type |
Width |
Height |
Thickness |
Section Area |
Weight |
mm |
mm |
mm |
cm² |
kg/m |
|
U7-750 |
750 |
320 |
5 |
71.8 |
42.3 |
U7-900 |
900 |
320 |
5 |
68.8 |
48.2 |
U7-850 |
850 |
320 |
5 |
69.4 |
46.3 |
U8-750 |
750 |
320 |
6 |
86.1 |
50.7 |
U8-850 |
850 |
320 |
6 |
83 |
55.4 |
U8-900 |
900 |
320 |
6 |
81.8 |
57.8 |
U9-750 |
750 |
320 |
7 |
100 |
58.9 |
U9-850 |
850 |
320 |
7 |
96.5 |
64.4 |
U9-600 |
600 |
320 |
7 |
108.3 |
50.7 |
U9-900 |
900 |
320 |
7 |
95 |
6701 |
U10-700 |
700 |
310 |
9 |
129.6 |
71.2 |
U10-1050 |
1050 |
310 |
9 |
116.2 |
95.8 |
U10-450 |
450 |
360 |
8 |
147.7 |
52.2 |

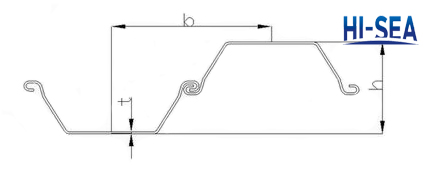

Sketch of the U shape steel sheet pile
U Type Steel Sheet Pile for Embankment
