HZ Type Steel Sheet Pile

HZ Type Steel Sheet Pile

1. Flexible design, relatively high section modulus and mass ratio

2. Higher moment of inertia increase the stiffness of sheet pile wall, and reduce the displacement and deformation

3. Large width save the hoisting and driving time effectively

4. Increased cross section directly improve the waterproof performance

5. Thickening the severe corrosion parts make it has excellent corrosion resistance.

6. The design and production cycle is short, the performance of it can be customized.

7. Special specification can be made according to customers requirements.

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.

2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

Specification:

Type

Dimensions

Section Area

Mass

a(m)

h(mm)

cm²

kg/m²

HZ I 880A

1.87

830

276.7

217

HZ I 880B

1.87

830

293.7

231

HZ I 880C

1.87

830

301.5

237

HZ I 1080A

1.87

1075

319.5

251

HZ I 1080B

1.87

1075

331.9

261

HZ I 1080C

1.87

1075

354.9

278

HZ I 1080D

1.87

1075

372.1

292

HZ I 1180A

1.87

1075

386.4

303

HZ I 1180B

1.87

1075

395.6

311

HZ I 1180C

1.87

1085

413.4

325

HZ I 1180D

1.87

1090

427.5

338

HZ Type Steel Sheet Pile

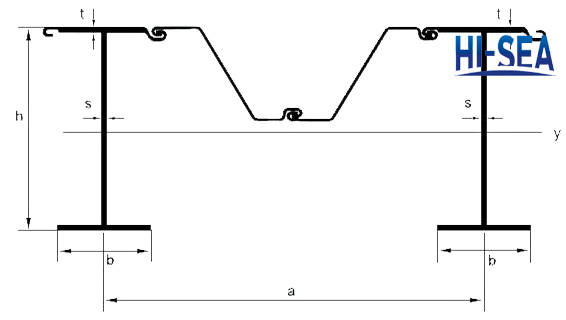

Sketch of the HZ type steel sheet pile

HZ Type Steel Sheet Pile

HZ Type Steel Sheet Pile
