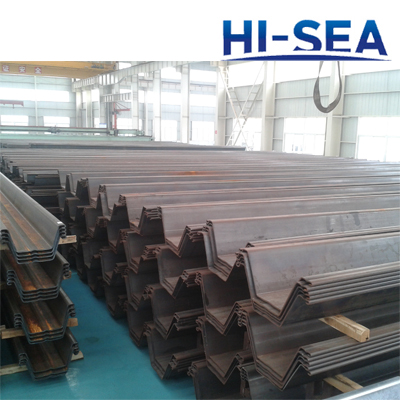

450-1050mm Width Steel Sheet Pile
steel sheet pile is formed by cold bending or hot rolling equipment with continuous rolling. The side lock of it can be connected together to form a steel structure sheet pile wall. The structure of it is symmetrical, which make it can be used repeatedly. And special specification can be made according to customers requirements.
Product Details:
1. Width: 450-1050mm
2. Height: 310-600mm
3. Good corrosion resistance performance.
4. Higher moment of inertia reduce structural deformation
5. Large width increase the effectiveness of sinking pile
Attention:
1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.
Specification:
Type |
Width |
Height |
Thickness |
Section Area |
Weight |
mm |
mm |
mm |
cm²/m |
kg/m |
|
U8-450 |
450 |
360 |
8 |
147.7 |
52.2 |
U8-575 |
575 |
360 |
8 |
133.1 |
60.1 |
U8-600 |
600 |
360 |
8 |
131 |
61.7 |
U7-600 |
600 |
320 |
7 |
108.3 |
50.7 |
U7-700 |
700 |
320 |
7 |
129.6 |
58.9 |
U7-850 |
850 |
320 |
7 |
96.5 |
64.4 |
U7-900 |
900 |
320 |
7 |
95 |
67.1 |
U7-1050 |
1050 |
310 |
7 |
116.2 |
95.8 |
