Z Type Cold Formed Steel Sheet Pile
The larssen fore shaft of Z type cold formed steel sheet pile are symmetrically distributed on the both side of neutral asix, and the web of it are continuous. This character greatly improves the section modulus and flexural stiffness to ensure sectional mechanics can be played fully.
Product Details:
1. More economic price2. Higher moment of inertia reduce structural deformation
3. Large width increase the effectiveness of sinking pile
4. The severe corrosion parts have been thickened
5. Special specification can be made according to customers requirements.
Attention:1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.
Specification:
Model |
Width |
Height |
Thickness |
Sectional Area |
Weight |
W(mm) |
H(mm) |
T(mm) |
cm²/m |
kg/m |
|
HSZ11-1 |
575 |
260 |
8.8 |
128.7 |
58.1 |
HSZ11-2 |
575 |
260 |
9.5 |
144 |
62 |
HSZ12-1 |
670 |
302 |
8.5 |
126 |
66.1 |
HSZ12-2 |
770 |
344 |
8.5 |
120 |
72.8 |
HSZ12-3 |
575 |
260 |
10.2 |
145.8 |
65.8 |
HSZ13-1 |
670 |
303 |
9.5 |
137 |
72 |
HSZ13-2 |
770 |
344 |
9 |
126 |
76.1 |
HSZ13-3 |
575 |
260 |
10.8 |
150 |
67.9 |
HSZ14-1 |
670 |
304 |
10.5 |
148.9 |
72 |
HSZ14-2 |
770 |
345 |
9.5 |
131.5 |
76.1 |
HSZ14-3 |
770 |
345 |
10 |
137 |
67.9 |
HSZ14-4 |
650 |
320 |
8 |
120 |
78.3 |
HSZ15-1 |
700 |
420 |
7 |
112.8 |
79.5 |

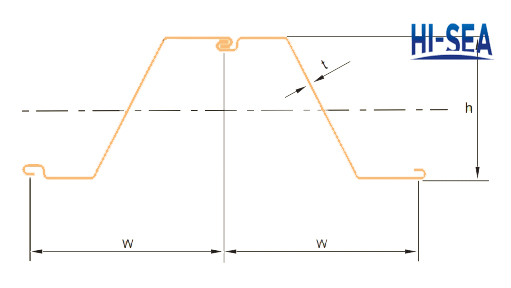

Sketch of the Z type cold formed steel sheet pile

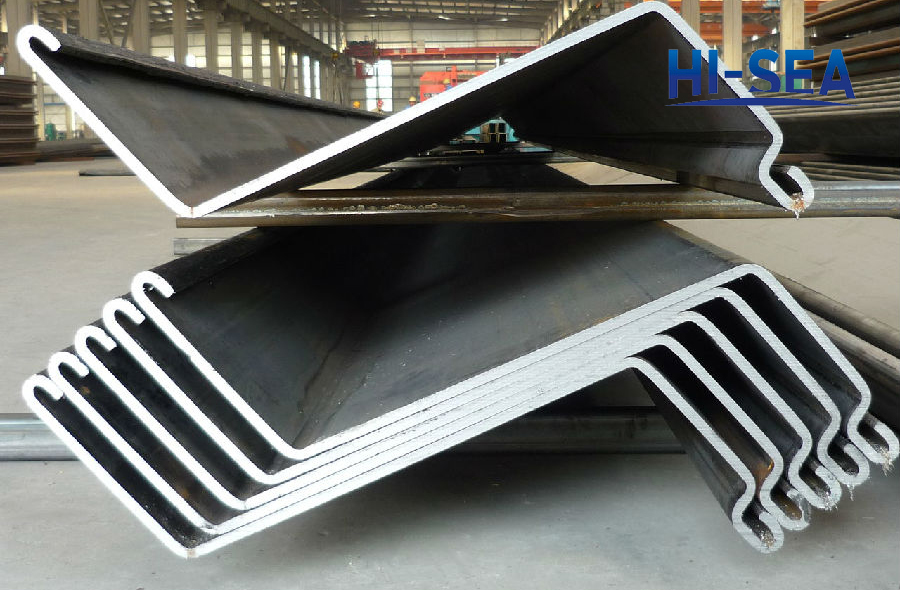

Z Type Cold Formed Steel Sheet Pile
