L/S Type Steel Sheet Pile
L/S type steel sheet pile is mainly used for the support of bank, dam wall, digging trench and ditching. It has advantages of light section, taking up little space of pile wall and being in the same direction of lock. All of this characters make the construction convenient, and is suitable for municipal engineering excavation and construction.
Product Details:
1. Good corrosion resistance performance.2. The design and production cycle is short, the performance of it can be customized.
3. For construction task, it can reduce the space requirement.
4. Large width make installation convenient
5. Special specification can be made according to customers requirements
Attention:1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.
2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.
Specification:
L Type Steel Sheet Pile
Type |
Width |
Height |
Thickness |
Weight |
Section Modulus |
mm |
mm |
mm |
kg/m |
cm³/m |
|
L1.5 |
700 |
100 |
3 |
21.4 |
145 |
L2 |
700 |
150 |
3 |
22.9 |
223 |
L3 |
700 |
150 |
4.5 |
35 |
329 |
L4 |
700 |
180 |
5 |
40.4 |
442 |
L5 |
700 |
180 |
6.5 |
52.7 |
566 |
L6 |
700 |
180 |
7 |
57.1 |
606 |
S Type Steel Sheet Pile
Type |
Width |
Height |
Thickness |
Weight |
Section Modulus |
mm |
mm |
mm |
kg/m |
cm³/m |
|
S4 |
600 |
260 |
3.5 |
31.2 |
425 |
S5 |
600 |
260 |
4 |
36.6 |
516 |
S6 |
700 |
260 |
5 |
45.3 |
608 |
S8 |
700 |
320 |
5.5 |
53 |
812 |
S9 |
700 |
320 |
6.5 |
62.6 |
952 |

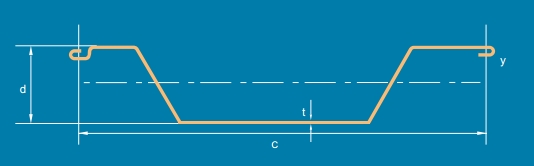

Sketch of the L/S type steel sheet pile
