BSD Type Bulkhead Seal
This product is BSD type bulkhead seal for ships. It is suggested that small and medium yachts or vessels should equip with this floating self-sealing bulkhead sealing apparatus. The sizes of the product in the following table are for reference only. If customers have some other demand, we can make a special design.
Drawing and specification:

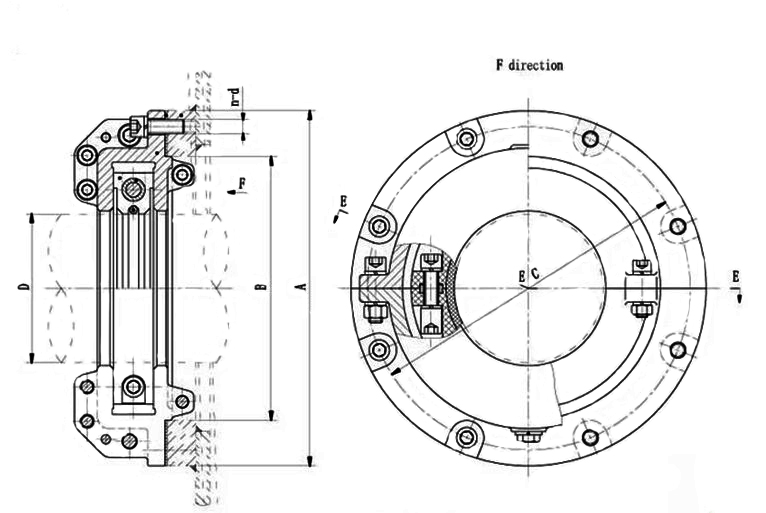

Drawing of BSD Bulkhead Seal
Size |
70 |
80 |
90 |
106 |
110 |
122 |
125 |
130 |
150 |
170 |
175 |
180 |
200 |
|
Dimensions (mm) |
D |
70 |
80 |
90 |
106 |
110 |
122 |
125 |
130 |
150 |
170 |
175 |
180 |
200 |
A |
250 |
225 |
270 |
305 |
290 |
305 |
270 |
310 |
330 |
335 |
350 |
360 |
380 |
|
B |
170 |
180 |
190 |
230 |
210 |
238 |
245 |
230 |
250 |
280 |
280 |
280 |
300 |
|
C |
220 |
200 |
240 |
276 |
260 |
276 |
225 |
282 |
300 |
306 |
310 |
330 |
350 |
|
n-d |
8-M10 |
8-M10 |
8-M10 |
8-M10 |
8-M10 |
8-M10 |
8-M10 |
8-M12 |
8-M12 |
8-M12 |
8-M12 |
8-M12 |
8-M12 |
Product picture:

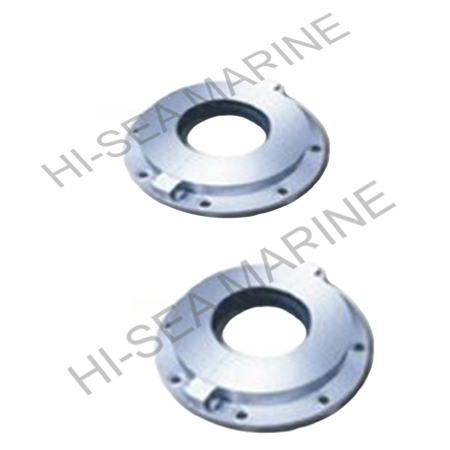

BSD Bulkhead Sealing Apparatus
