JQ/CS 49 Type Stern Tube Bearing
Made of white metal, this type of stern tube bearing is suitable for inland water vessels whose stern tube working medium is oil. Our products are designed with high quality. We promise to offer the first-class service. This product is approved by many classification society certificates such CCS, ABS, BV, DNV, GL, and RINA. To meet customer¡¯s demand, we can offer the appointed certificate.
Drawing and specification:

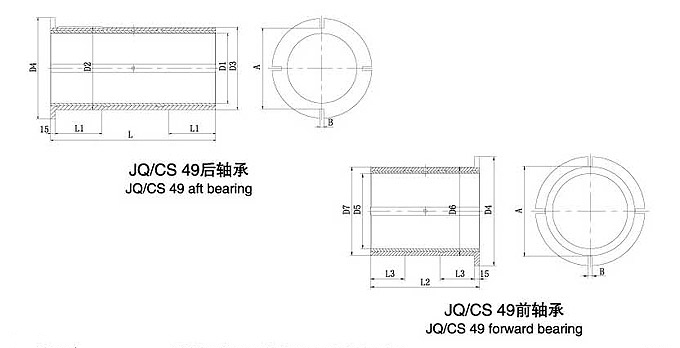

Drawing of JQ/CS 49 Type Stern Tube Bearing
unit: mm
Model |
D1 |
D2 |
D3 |
D4 |
D5 |
D6 |
D7 |
L |
L1 |
L2 |
L3 |
A |
B |
Weight (kg) |
|
Front |
Back |
||||||||||||||
130JQ/CS49 |
145 |
185 |
184 |
230 |
140 |
185 |
184 |
300 |
90 |
210 |
50 |
176 |
12 |
20 |
28 |
140JQ/CS49 |
155 |
195 |
194 |
240 |
150 |
190 |
189 |
360 |
90 |
230 |
50 |
186 |
12 |
22 |
32 |
150JQ/CS49 |
165 |
205 |
204 |
250 |
160 |
205 |
204 |
380 |
100 |
240 |
60 |
196 |
12 |
25 |
36 |
160JQ/CS49 |
175 |
220 |
219 |
265 |
170 |
225 |
224 |
410 |
100 |
260 |
60 |
210 |
14 |
28 |
40 |
170JQ/CS49 |
185 |
230 |
229 |
276 |
180 |
230 |
229 |
430 |
100 |
270 |
70 |
220 |
14 |
32 |
44 |
180JQ/CS49 |
195 |
250 |
249 |
300 |
190 |
245 |
244 |
460 |
110 |
290 |
80 |
240 |
14 |
36 |
48 |
190JQ/CS49 |
205 |
260 |
259 |
310 |
200 |
255 |
254 |
480 |
120 |
300 |
80 |
250 |
14 |
41 |
62 |
200JQ/CS49 |
215 |
260 |
259 |
310 |
210 |
255 |
254 |
510 |
140 |
310 |
90 |
255 |
14 |
46 |
70 |
210JQ/CS49 |
225 |
266 |
265 |
320 |
220 |
261 |
260 |
530 |
150 |
320 |
100 |
260 |
14 |
51 |
80 |
220JQ/CS49 |
235 |
280 |
279 |
340 |
230 |
275 |
274 |
560 |
150 |
340 |
100 |
275 |
14 |
56 |
90 |
230JQ/CS49 |
245 |
295 |
294 |
350 |
240 |
295 |
294 |
580 |
160 |
360 |
100 |
284 |
16 |
62 |
100 |
240JQ/CS49 |
260 |
305 |
304 |
360 |
255 |
300 |
299 |
620 |
170 |
370 |
110 |
300 |
16 |
67 |
110 |
250JQ/CS49 |
270 |
315 |
314 |
370 |
265 |
315 |
314 |
650 |
180 |
380 |
110 |
310 |
16 |
73 |
120 |
260JQ/CS49 |
280 |
330 |
329 |
400 |
275 |
325 |
324 |
680 |
200 |
400 |
120 |
315 |
18 |
80 |
135 |
270JQ/CS49 |
290 |
340 |
339 |
400 |
285 |
335 |
334 |
710 |
200 |
420 |
120 |
325 |
18 |
86 |
145 |
280JQ/CS49 |
300 |
350 |
349 |
410 |
295 |
345 |
344 |
730 |
210 |
440 |
120 |
335 |
18 |
92 |
155 |
290JQ/CS49 |
310 |
360 |
359 |
420 |
305 |
355 |
354 |
750 |
220 |
460 |
120 |
345 |
18 |
100 |
165 |
300JQ/CS49 |
320 |
370 |
369 |
430 |
315 |
365 |
364 |
780 |
230 |
470 |
120 |
355 |
18 |
110 |
175 |
310JQ/CS49 |
330 |
380 |
379 |
440 |
325 |
375 |
374 |
800 |
240 |
480 |
120 |
365 |
18 |
120 |
185 |
320JQ/CS49 |
340 |
390 |
389 |
450 |
335 |
385 |
384 |
830 |
240 |
500 |
130 |
375 |
18 |
130 |
200 |
330JQ/CS49 |
350 |
400 |
399 |
460 |
345 |
395 |
394 |
850 |
240 |
520 |
130 |
385 |
18 |
140 |
215 |
340JQ/CS49 |
360 |
410 |
409 |
470 |
355 |
405 |
404 |
880 |
250 |
530 |
130 |
395 |
18 |
155 |
230 |
350JQ/CS49 |
370 |
420 |
419 |
480 |
365 |
415 |
414 |
900 |
250 |
550 |
140 |
405 |
18 |
170 |
245 |

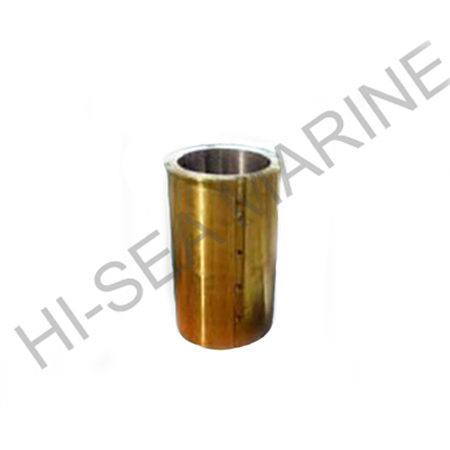

Product picture:
JQ/CS 49 Type Stern Shaft Bearing
