HPSD/HPSD-I Water Lubricated Stern Shaft Seal
[Search Related Products]
HPSD/HPSD-I Water Lubricated Stern Shaft Seal
This product is HPSD/HPSD-I type water lubricated stern shaft seal. It is suitable for kinds of vessels whose working medium is water. When the axial vibration is less than 1mm, the HPSD type can be used. When the axial vibration is less than ¡À3mm and the speed is high, the HPSD-I type can be chosen.
Drawing and specification:

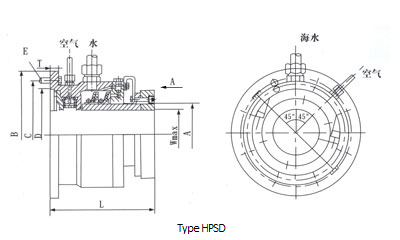

Drawing of HPSD Stern Shaft Seal

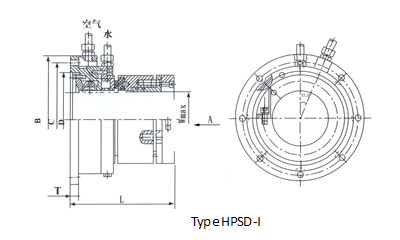

Drawing of HPSD-I Stern Shaft Seal
Type |
70 |
90 |
110 |
130 |
150 |
170 |
190 |
210 |
230 |
250 |
270 |
290 |
310 |
330 |
350 |
370 |
390 |
410 |
430 |
450 |
|
Dimensions (mm) |
A |
70 |
90 |
110 |
130 |
150 |
170 |
190 |
210 |
230 |
250 |
270 |
290 |
310 |
330 |
350 |
370 |
390 |
410 |
430 |
450 |
WMAX |
55 |
75 |
95 |
115 |
135 |
155 |
175 |
195 |
215 |
230 |
250 |
270 |
290 |
310 |
325 |
345 |
365 |
385 |
405 |
425 |
|
B |
250 |
265 |
285 |
300 |
330 |
370 |
380 |
420 |
440 |
460 |
480 |
510 |
530 |
540 |
590 |
620 |
640 |
670 |
690 |
710 |
|
C |
225 |
240 |
260 |
260 |
280 |
330 |
345 |
385 |
405 |
425 |
445 |
475 |
495 |
500 |
550 |
570 |
590 |
615 |
635 |
655 |
|
D |
165 |
180 |
195 |
215 |
235 |
255 |
275 |
305 |
325 |
345 |
365 |
385 |
405 |
425 |
445 |
465 |
485 |
515 |
535 |
555 |
|
L |
290 |
290 |
290 |
290 |
290 |
290 |
290 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
345 |
345 |
345 |
|
E |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
D |
M10 |
M10 |
M10 |
M10 |
M12 |
M12 |
M12 |
M16 |
M16 |
M16 |
M16 |
M16 |
M16 |
M20 |
M20 |
M20 |
M20 |
M20 |
M20 |
M20 |
|
T |
18 |
18 |
20 |
20 |
20 |
20 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
30 |
30 |
30 |

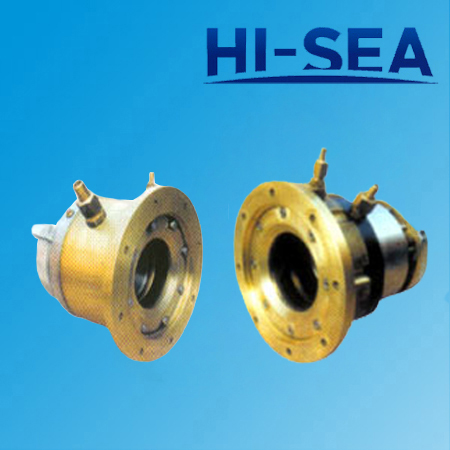

Product picture:
Water Lubrication Stern Shaft Seal

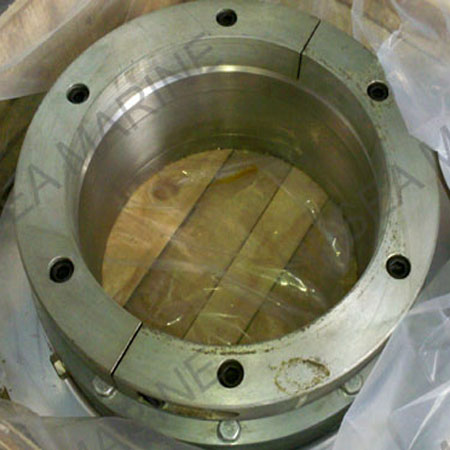

Water Lubrication Stern Tube Sealing Apparatus
