Marine JQ/CS 48A Type Stern Tube Seal
[Search Related Products]Marine JQ/CS 48A Type Stern Tube Seal
This product is JQ/CS 48A type stern tube seal. It is a kind of oil lubricated stern tube seals. It is suggested for inland water vessels especially for small yachts. It is approved by certificates such as CCS, ABS, GL, NK, DNV, BV, etc.
Drawing and specification:

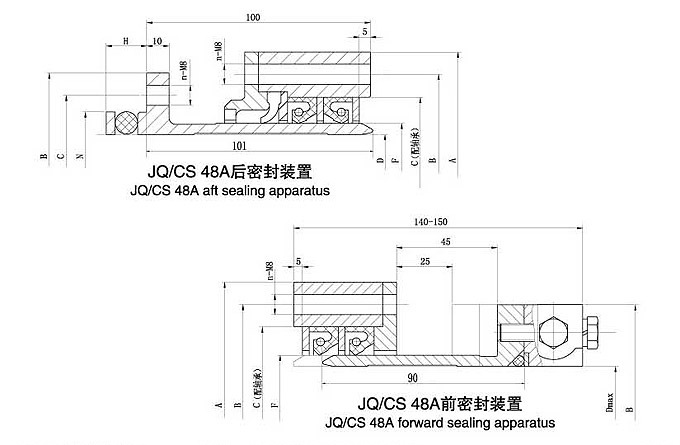

Drawing of Marine 48A Type Stern Tube Seal
unit: mm
Specification |
D |
A |
B |
C |
F |
H |
N |
n |
Weight (kg) |
|
Front |
Back |
|||||||||
45 |
38 |
110 |
90 |
70 |
45 |
12 |
50 |
4 |
4.5 |
5 |
50 |
43 |
115 |
95 |
75 |
50 |
12 |
55 |
4 |
4.8 |
5.3 |
55 |
48 |
120 |
100 |
80 |
55 |
12 |
60 |
4 |
5.2 |
5.7 |
60 |
52 |
125 |
105 |
85 |
60 |
12 |
65 |
4 |
5.6 |
6.1 |
65 |
57 |
130 |
110 |
90 |
65 |
12 |
70 |
6 |
6.0 |
6.5 |
70 |
60 |
135 |
115 |
95 |
70 |
12 |
75 |
6 |
6.4 |
7.0 |
75 |
67 |
140 |
120 |
100 |
75 |
12 |
80 |
6 |
6.8 |
7.5 |
80 |
70 |
145 |
125 |
105 |
80 |
17 |
90 |
6 |
7.3 |
8.1 |
85 |
75 |
150 |
130 |
110 |
85 |
17 |
95 |
6 |
7.8 |
8.8 |
90 |
80 |
155 |
135 |
115 |
90 |
17 |
100 |
6 |
8.5 |
9.8 |
95 |
85 |
160 |
140 |
120 |
95 |
17 |
105 |
8 |
9.2 |
11 |
100 |
90 |
165 |
145 |
125 |
100 |
17 |
110 |
8 |
9.9 |
12.5 |
10.5 |
95 |
170 |
150 |
130 |
105 |
17 |
115 |
8 |
10.8 |
14 |
110 |
100 |
175 |
155 |
135 |
110 |
17 |
120 |
8 |
12 |
15.5 |
