Marine JQ/CS 39 Type Stern Tube Seal
[Search Related Products]Marine JQ/CS 39 Type Stern Tube Seal
This product is JQ/CS 39 type stern tube seal. Approved by certificates such as CCS, ABS, DNV, BV, this type of apparatuses is suggested to be chosen when inland water vessels have oil as their lubricating working medium and do not have a large stern shaft.
Drawing and specification:

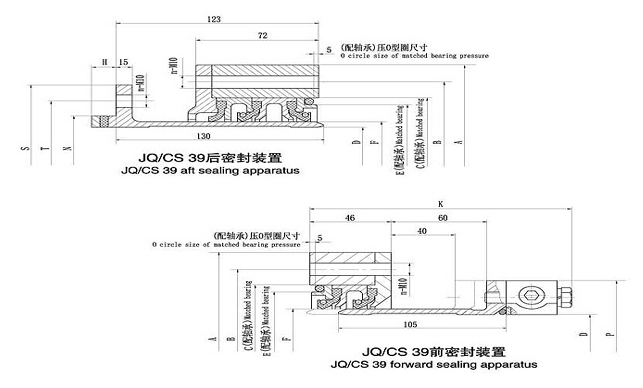

Drawing of Marine JQ/CS 39 Type Stern Tube Seal
unit: mm
Model |
D |
A |
B |
C |
E |
H |
K |
T |
N |
P |
S |
n |
F |
Weight (kg) |
|
Front |
Back |
||||||||||||||
70JQ/CS39 |
70 |
176 |
150 |
122 |
110 |
17.5 |
144 |
116 |
90 |
130 |
145 |
6 |
80 |
9 |
10.5 |
80JQ/CS39 |
80 |
185 |
160 |
132 |
120 |
17.5 |
146 |
126 |
100 |
140 |
155 |
6 |
90 |
10.2 |
11.8 |
90JQ/CS39 |
90 |
195 |
170 |
142 |
130 |
17.5 |
148 |
136 |
110 |
150 |
165 |
8 |
100 |
11.5 |
13.5 |
100JQ/CS39 |
100 |
205 |
180 |
152 |
140 |
175 |
150 |
146 |
120 |
160 |
175 |
8 |
110 |
13 |
16 |
110JQ/CS39 |
110 |
220 |
190 |
162 |
150 |
17.5 |
150 |
156 |
130 |
170 |
185 |
8 |
120 |
15 |
19 |
120JQ/CS39 |
120 |
235 |
200 |
172 |
160 |
20 |
152 |
166 |
145 |
180 |
195 |
8 |
130 |
17.8 |
22.5 |
Product image:

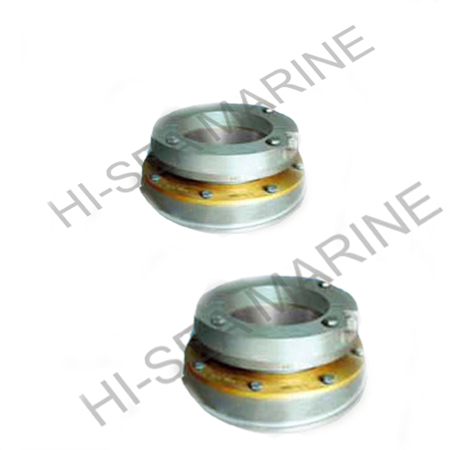

Ship JQ/CS 39 Type Stern Shaft Seal
