Type C Intermediate Shaft Bulkhead Stuffing Box
[Search Related Products]Type C Intermediate Shaft Bulkhead Stuffing Box
Approved by JT/T263-1995 standard, this product is the type C marine intermediate shaft bulkhead stuffing box. It is the sealing device which is installed in the bulkhead where the shaft is through in order to keep watertight. This type bulkhead stuffing box is made of cast iron & carbon steel. Usually, type C is chosen when the bulkhead space of ship is small or there are some requirements on design. Certificates about this product are CCS, BV, ABS, GL, LR, NK, etc.
Features:
1. Material: cast iron & carbon steel
2. Standard: JT/T263-1995
3. Certificates: CCS, ABS, BV, DNV, KR, GL, RINA, etc.
4. Application: be suggested to choose when the bulkhead space of vessel is small or there are some requirement on design
Drawing and specification:

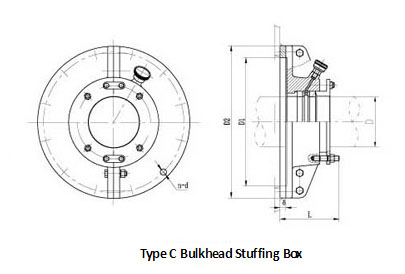

Drawing of Type C Bulkhead Stuffing Box
Dimensions (mm) |
||||||||||
Type |
D |
B(D1) |
H |
B1(D2) |
H1 |
L |
¦Ä |
n |
d |
oil cup (cm3) |
C70 |
70 |
220 |
360 |
280 |
420 |
120 |
16 |
14 |
13 |
18 |
C80 |
80 |
240 |
400 |
300 |
460 |
120 |
16 |
14 |
13 |
18 |
C90 |
90 |
260 |
430 |
320 |
490 |
120 |
16 |
14 |
13 |
18 |
C100 |
100 |
290 |
490 |
360 |
560 |
120 |
16 |
14 |
13 |
18 |
C110 |
110 |
310 |
520 |
380 |
590 |
150 |
20 |
14 |
15 |
25 |
C120 |
120 |
350 |
590 |
420 |
660 |
150 |
20 |
14 |
15 |
25 |
C130 |
130 |
370 |
610 |
440 |
680 |
150 |
20 |
14 |
15 |
25 |
C140 |
140 |
390 |
650 |
460 |
720 |
150 |
20 |
16 |
15 |
25 |
C150 |
150 |
410 |
690 |
480 |
760 |
150 |
20 |
16 |
15 |
25 |
C160 |
160 |
420 |
710 |
500 |
790 |
190 |
22 |
16 |
17 |
50 |
C170 |
170 |
440 |
740 |
520 |
820 |
190 |
22 |
16 |
17 |
50 |
C180 |
180 |
450 |
770 |
530 |
850 |
190 |
22 |
16 |
17 |
50 |
C190 |
190 |
470 |
800 |
550 |
880 |
190 |
22 |
16 |
17 |
50 |
C200 |
200 |
480 |
820 |
560 |
900 |
190 |
22 |
16 |
17 |
50 |
Product displaying:

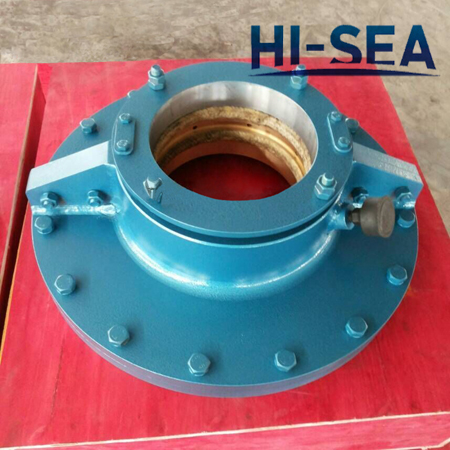

Type C Bulkhead Stuffing Box
