GCD Marine Bulkhead Gearing

GCD Marine Bulkhead Gearing

This product is GCD type marine bulkhead gearing device. It is suitable for power transmission of the ship’s bulkhead between pump room and engine room (speed no more than 3000r/min) of vessels which transport the crude oil, petroleum products and liquid chemicals. It is in line with national standards and ship inspection requirements.

Drawing and specification:

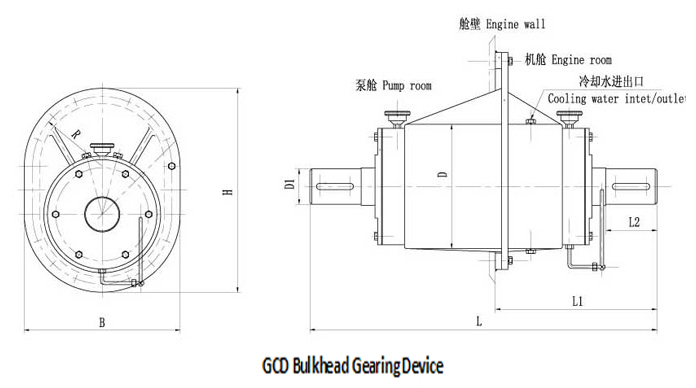

Drawing of Marine Bulkhead Gearing

Model	Cooling water capacity m³/h	L	H	B	L₁	L₂	D	R	D₁	Weight (kg)	Cooling water intake/outlet
Model	Cooling water capacity m³/h	mm								Weight (kg)	Cooling water intake/outlet
GCD-30	1	580	550	420	280	58	235	187.5	Ø30	100	M14x1.5
GCD-40	1	640	550	420	310	82	235	187.5	Ø40	109
GCD-50	1	680	550	420	330	82	235	187.5	Ø50	126
GCD-60	1	720	550	420	350	105	295	187.5	Ø60	133
GCD-70	1	760	550	420	380	105	295	187.5	Ø70	150
GCD-80	1	800	550	420	390	130	295	187.5	Ø80	180
GCD-90	1.5	880	550	420	410	130	295	187.5	Ø90	230
GCD-100	1.5	930	670	540	480	165	351	245	Ø100	260

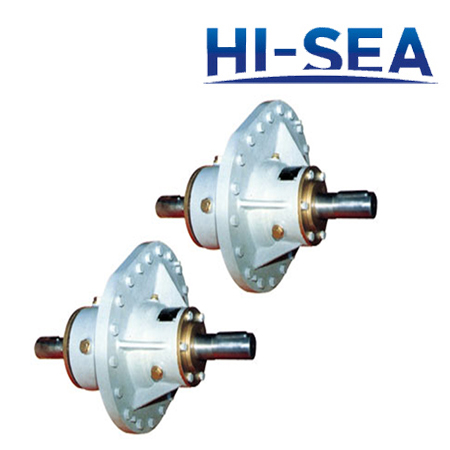

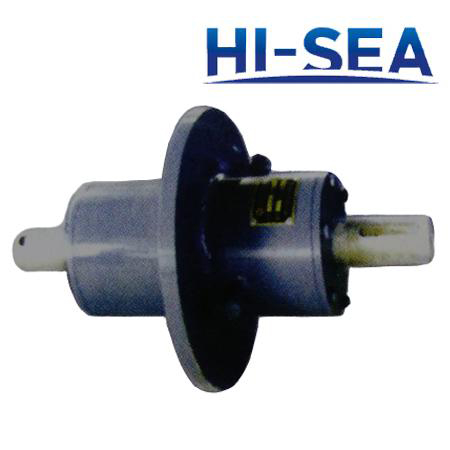

Product displaying:

GCD Marine Bulkhead Gearing

Bulkhead Gearing

GCD Marine Bulkhead Gearing

Bulkhead Gearing Device
