JZ Marine Shafting Mechanical Brake
[Search Related Products]JZ Marine Shafting Mechanical Brake
This product is JZ shafting mechanical brake for vessels. It is t is suitable for small and medium vessels whose stem shafts need to be locked when they anchor. We can provide many kinds of model about this product. If you can¡®t find the size what you want, please be free to tell us, we will manufacture the product according to you demand.
Drawing and specification:

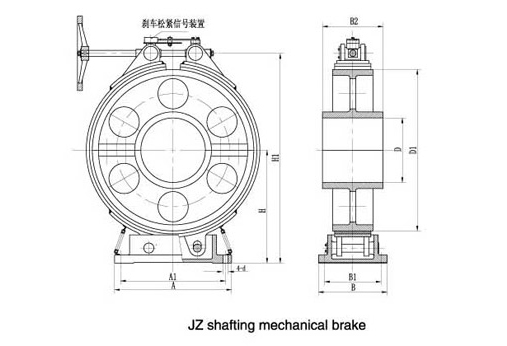

Drawing of JZ Shafting Mechanical Brake
Unit: mm
Model |
D |
D1 |
H |
H1 |
A |
A1 |
B |
B1 |
B2 |
Weight (kg) |
JZ60 |
60 |
380 |
285 |
505 |
320 |
260 |
160 |
110 |
100 |
84 |
JZ70 |
70 |
83 |
||||||||
JZ80 |
80 |
82 |
||||||||
JZ90 |
90 |
81 |
||||||||
JZ100 |
100 |
80 |
||||||||
JZ110 |
110 |
500 |
355 |
645 |
380 |
320 |
200 |
150 |
180 |
124 |
JZ120 |
120 |
123 |
||||||||
JZ130 |
130 |
122 |
||||||||
JZ140 |
140 |
121 |
||||||||
JZ150 |
150 |
120 |
||||||||
JZ160 |
160 |
620 |
450 |
820 |
440 |
380 |
260 |
200 |
240 |
190 |
JZ170 |
170 |
188 |
||||||||
JZ180 |
180 |
186 |
||||||||
JZ190 |
190 |
184 |
||||||||
JZ200 |
200 |
182 |
||||||||
JZ210 |
210 |
750 |
520 |
960 |
500 |
540 |
300 |
240 |
280 |
300 |
JZ220 |
220 |
295 |
||||||||
JZ230 |
230 |
290 |
||||||||
JZ240 |
240 |
285 |
||||||||
JZ250 |
250 |
280 |

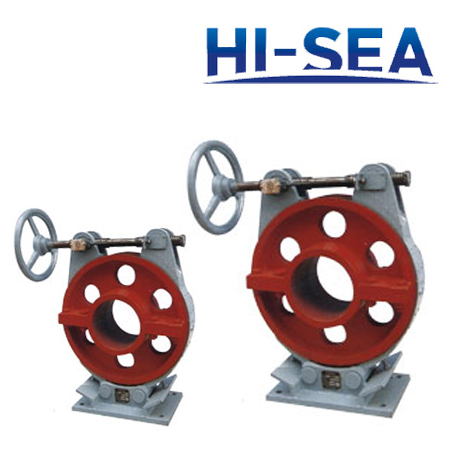

Product picture:
JZ Shafting Brake
