JT/T259 Inland Water Vessel Shafting Intermediate Bearing
This type of intermediate bearings is recommended for small and medium vessels in inland water. Type A and type B are gliding intermediate bearings. These marine intermediate bearings are made of metal. They are approved by certificates such as CCS, BV, DNV, ABS, GL and LR. To meet customersĄŻ need, we can offer OEM service and design the product according to clientsĄŻ request.
Features:
1. Material: metal
2. Long lifetime
3. High quality and competitive price
4. Certificates approved: CCS, ABS, BV, etc.
5. Special design according to customersĄŻ requirements
Drawing and specification:

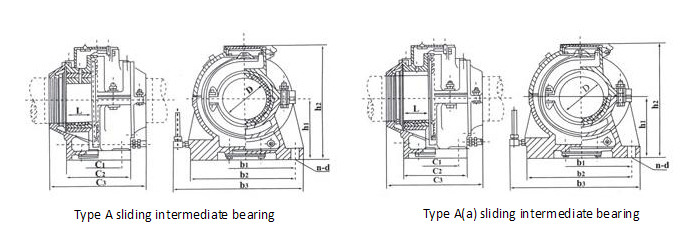

Drawing of Type A Shafting Intermediate Bearing
Unit: mm
Type |
Dimensions (mm) |
Weight (kg) |
||||||||||||
D |
L |
C1 |
C2 |
C3 |
b1 |
b2 |
b3 |
h1 |
h2 |
D2 |
n-d |
|||
A A (a) |
140 |
140 |
77 |
150 |
210 |
344 |
360 |
420 |
478 |
229 |
450 |
15 |
4-25 |
115 |
160 |
160 |
88 |
171 |
231 |
365 |
396 |
456 |
514 |
240 |
472 |
15 |
4-25 |
119 |
|
180 |
180 |
88 |
183 |
253 |
387 |
410 |
480 |
538 |
252 |
494 |
15 |
4-32 |
151 |
|
200 |
200 |
110 |
205 |
273 |
407 |
440 |
510 |
568 |
280 |
529 |
15 |
4-32 |
160 |
|
210 |
210 |
115 |
215 |
285 |
419 |
445 |
515 |
585 |
288 |
547 |
15 |
4-32 |
162 |
|
220 |
220 |
121 |
227 |
293 |
431 |
466 |
536 |
594 |
285 |
555 |
15 |
4-32 |
207 |

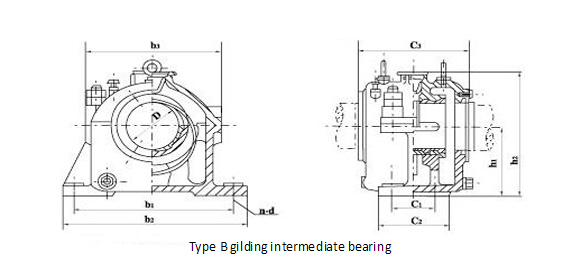

Drawing of Type B Shafting Intermediate Bearing
Unit: mm
Type |
Dimensions (mm) |
Weight (kg) |
||||||||||
D |
C1 |
C2 |
C3 |
b1 |
b2 |
b3 |
h1 |
h2 |
n-d |
|||
B |
60 |
60 |
60 |
110 |
178 |
280 |
330 |
225 |
130 |
230 |
4-21 |
32 |
70 |
70 |
70 |
120 |
180 |
290 |
340 |
242 |
135 |
242 |
4-21 |
35 |
|
80 |
80 |
70 |
120 |
190 |
300 |
350 |
260 |
140 |
252 |
4-21 |
38 |
|
90 |
90 |
80 |
130 |
210 |
330 |
380 |
280 |
150 |
272 |
4-21 |
46 |
|
100 |
100 |
90 |
150 |
220 |
340 |
400 |
290 |
160 |
282 |
4-25 |
55 |
|
110 |
110 |
100 |
160 |
240 |
350 |
410 |
300 |
180 |
308 |
4-25 |
57 |
|
120 |
120 |
100 |
160 |
240 |
350 |
410 |
300 |
180 |
308 |
4-25 |
60 |
|
140 |
140 |
116 |
180 |
275 |
405 |
470 |
342 |
198 |
340 |
4-32 |
73 |
Product showing:

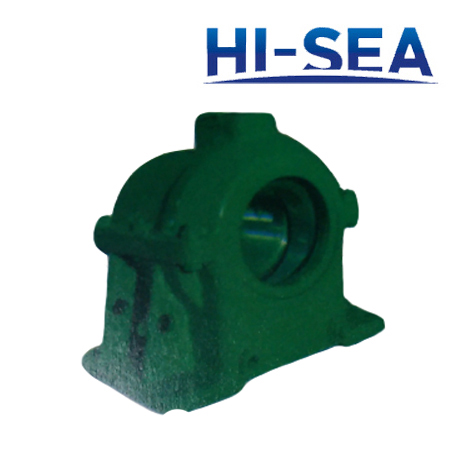

Vessel Shafting Intermediate Bearing (Type A)

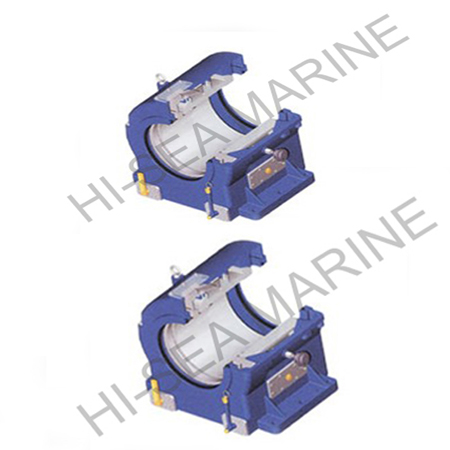

Shafting Intermediate Bearing (Type B)
