JT/T365-1995 Stern Shaft Lubrication Oil Tank
[Search Related Products]JT/T365-1995 Stern Shaft Lubrication Oil Tank
This product is marine stern shaft lubrication oil tank which is approved by JT/T365-1995 standard. This type of oil tanks above 30L can be equipped with a low oil alarm device. In the table as follow, we can supply four models of this product. The sizes of it are for reference only. We can make a special design according to customer¡¯s request.
Drawing and specification:

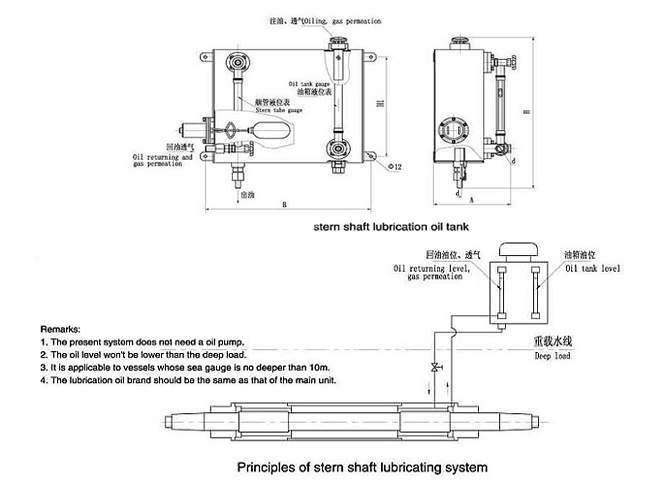

Drawing of Stern Shaft Lubrication Oil Tank
Unit: mm
Model |
Capacity L |
A |
B |
H |
H1 |
d |
Applicable stern shaft diameter |
Weight kg |
|
One shaft with on oil tank |
Two shafts with one oil tank |
||||||||
15JT/T365 |
15 |
245 |
370 |
630 |
360 |
15 |
¡Ý70¡Ü120 |
£¼70 |
10 |
30JT/T365 |
30 |
245 |
520 |
730 |
460 |
15 |
£¾120¡Ü170 |
¡Ý70¡Ü120 |
15 |
50JT/T365 |
50 |
285 |
670 |
730 |
460 |
20 |
£¾170 |
18 |
26 |
Product showing:

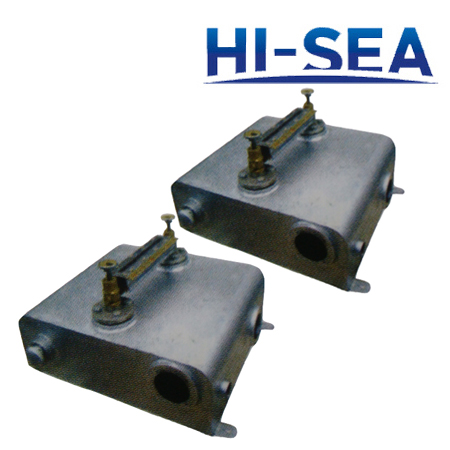

Marine Stern Shaft Lubrication Oil Tank
