SM/SMB Type Water Lubrication Stern Tube Seal
This product is marine lubricated stern tube seal. We have two types of this product: type SM and type SMB. This vessel water lubricated is suitable for kinds of vessels whose working medium is water. When the axial vibration¡Ü1mm, the SM type can be used; When the axial vibration¡Ü¡À3mm and then speed is high, the SMB type can be used.
Drawing and specification:
Drawing of Water Lubrication Stern Tube Seal
Size |
70 |
90 |
110 |
130 |
150 |
170 |
190 |
210 |
230 |
250 |
270 |
290 |
310 |
330 |
350 |
370 |
390 |
410 |
430 |
450 |
470 |
490 |
510 |
530 |
550 |
570 |
|
Dimensions (mm) |
A |
70 |
90 |
110 |
130 |
150 |
170 |
190 |
210 |
230 |
250 |
270 |
290 |
310 |
330 |
350 |
370 |
390 |
410 |
430 |
450 |
470 |
490 |
510 |
530 |
550 |
570 |
Wmax |
55 |
75 |
95 |
115 |
135 |
155 |
175 |
195 |
215 |
230 |
250 |
270 |
290 |
310 |
325 |
345 |
365 |
385 |
405 |
425 |
445 |
465 |
485 |
500 |
520 |
540 |
|
B |
250 |
265 |
285 |
300 |
330 |
370 |
380 |
420 |
440 |
460 |
480 |
530 |
540 |
570 |
590 |
620 |
640 |
670 |
690 |
710 |
730 |
750 |
770 |
790 |
810 |
830 |
|
C |
225 |
240 |
260 |
260 |
280 |
330 |
345 |
385 |
405 |
425 |
445 |
475 |
495 |
500 |
550 |
570 |
590 |
615 |
635 |
655 |
675 |
695 |
715 |
740 |
760 |
780 |
|
D |
165 |
180 |
195 |
215 |
235 |
255 |
240 |
305 |
325 |
345 |
365 |
385 |
405 |
425 |
445 |
465 |
485 |
515 |
535 |
555 |
575 |
595 |
615 |
640 |
660 |
680 |
|
L |
290 |
290 |
290 |
290 |
290 |
290 |
290 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
345 |
345 |
345 |
345 |
345 |
345 |
345 |
345 |
350 |
|
E |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
M10 |
M10 |
M10 |
M10 |
M12 |
M12 |
M12 |
M16 |
M16 |
M16 |
M16 |
M16 |
M20 |
M16 |
M20 |
M20 |
M20 |
M20 |
M20 |
M20 |
M20 |
M20 |
M20 |
M20 |
M20 |
M20 |
||
T |
20 |
20 |
20 |
20 |
20 |
25 |
30 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
Product displaying:

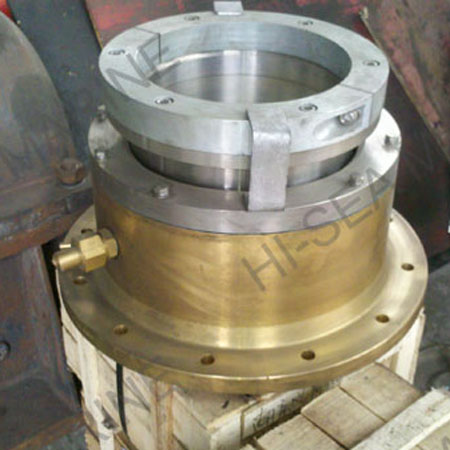

Stern Tube Sealing Apparatus
