GB/T 14364-2008 Inland Water Vessel Intermediate Bearing

GB/T 14364-2008 Inland Water Vessel Intermediate Bearing

This product is gliding intermediate bearing for inland water vessels. This marine sliding type shafting intermediate bearing is designed and manufactured according to GB/T14364-2008 standard which is widely applied in the intermediate bearing of new exporting ships and domestic ships.

Scope of application:

1. linear velocity: 1.5~8 m/s

2. unit pressure: ¡Ü0.6 MPa

3. lubricating oil temperature: 65 0C

4. cooling water amount: 0.5~7 t/h

Drawing and specification:

GB/T 14364-2008 Inland Water Vessel Intermediate Bearing

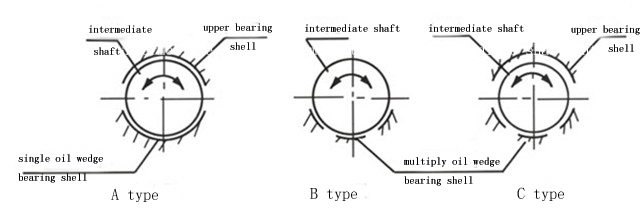

Drawing of Gliding Intermediate Bearing

Type

Structural style

Shaft diameter

Parameter for design

A

Single oil wedge sliding type with upper bearing shell

80~220

For the intermediate shaft bearing of minimal ship which close to stern tube or after compute which have load pressure

B

Multiply oil wedge sliding type

250~800

For the intermediate shaft bearing of large ship

C

Multiply oil wedge sliding type with upper bearing shell

250~800

For the intermediate shaft bearing of large ship which close to stern tube or after compute which have load pressure

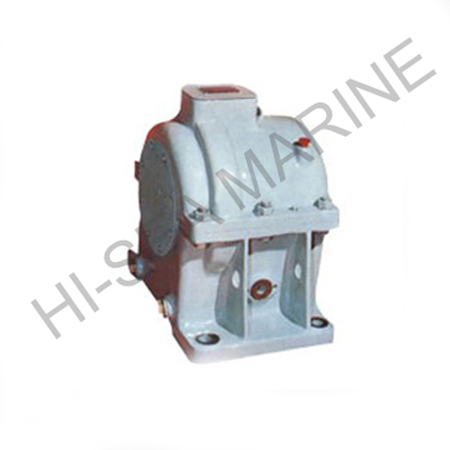

Product image:

GB/T 14364-2008 Inland Water Vessel Intermediate Bearing

Gliding Intermediate Bearing
