GB/T14364-2008 Marine Shafting Gliding Intermediate Bearing
This product is gliding intermediate bearing for ships. It is in accord with GB/T14364-2008 standard and suitable for vessels in inland water. We can supply three types of this product: type A, type B, and type C. Large vessels are suggested to choose type C. Small and medium vessels are suggested to choose type A and B. A Type B has no upper bearing among the three types. We can provide certificates like CCS, ABS, BV, DNV, and RINA about this product according client request.
Drawing and specification:

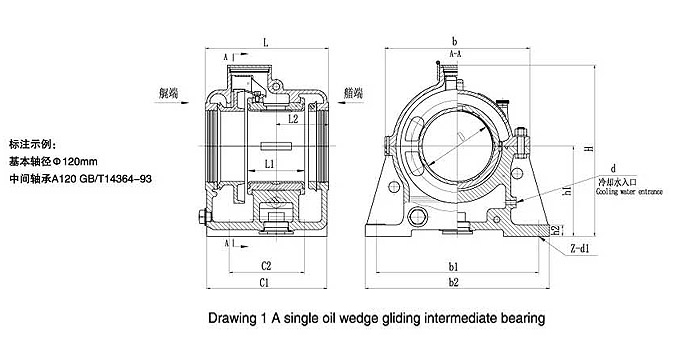

Drawing of Marine Type A Gliding Intermediate Bearing

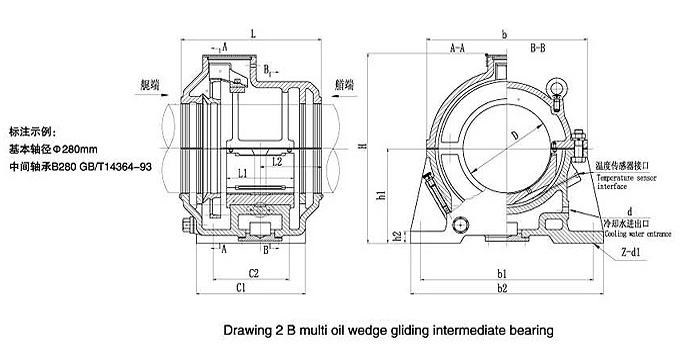

Drawing of Marine Type B Gliding Intermediate Bearing

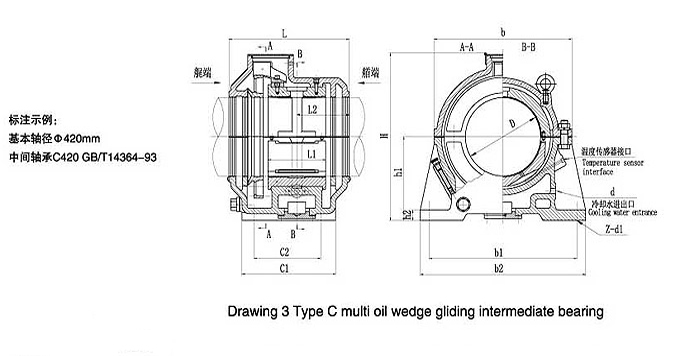

Drawing of Marine Type C Gliding Intermediate Bearing
unit: mm
D |
L1 |
L2 |
H |
H1 |
H2 |
b |
d1 |
d2 |
d2 |
c1 |
c2 |
d1 |
d |
z |
Type |
80 |
190 |
65 |
79.5 |
262 |
135 |
23 |
220 |
250 |
296 |
185 |
125 |
21 |
G2/4* |
4 |
A |
100 |
200 |
80 |
85 |
270 |
145 |
23 |
240 |
270 |
316 |
195 |
135 |
21 |
G3/4* |
4 |
|
120 |
225 |
100 |
97 |
312 |
160 |
25 |
270 |
300 |
350 |
220 |
160 |
21 |
G3/4* |
4 |
|
140 |
250 |
115 |
107.5 |
370 |
190 |
28 |
304 |
340 |
390 |
244 |
194 |
21 |
G3/4* |
4 |
|
160 |
280 |
130 |
119 |
400 |
205 |
28 |
330 |
370 |
420 |
274 |
224 |
21 |
20 |
4 |
|
180 |
335 |
145 |
140 |
485 |
265 |
30 |
400 |
450 |
510 |
285 |
230 |
25 |
20 |
4 |
|
200 |
350 |
160 |
140 |
496 |
275 |
35 |
410 |
450 |
510 |
326 |
250 |
25 |
20 |
4 |
|
220 |
380 |
180 |
164 |
544 |
292 |
38 |
430 |
490 |
566 |
374 |
298 |
25 |
20 |
4 |
|
250 |
420 |
195 |
187 |
580 |
300 |
40 |
490 |
530 |
610 |
322 |
250 |
32 |
20 |
4 |
B¡¢C |
280 |
450 |
215 |
199 |
620 |
310 |
40 |
520 |
560 |
630 |
340 |
270 |
32 |
20 |
4 |
|
300 |
480 |
230 |
209 |
635 |
320 |
40 |
550 |
590 |
660 |
370 |
298 |
32 |
20 |
4 |
|
320 |
500 |
250 |
219 |
690 |
350 |
50 |
580 |
630 |
700 |
390 |
320 |
32 |
20 |
4 |
|
350 |
350 |
270 |
236 |
780 |
400 |
50 |
650 |
700 |
780 |
418 |
334 |
38 |
20 |
4 |
|
380 |
560 |
290 |
240 |
790 |
420 |
55 |
710 |
760 |
840 |
460 |
380 |
38 |
25 |
4 |
|
400 |
590 |
300 |
260 |
810 |
440 |
5 |
730 |
780 |
860 |
480 |
400 |
38 |
25 |
4 |
|
420 |
620 |
320 |
265 |
900 |
460 |
65 |
770 |
820 |
920 |
500 |
400 |
44 |
25 |
4 |
|
450 |
660 |
340 |
280 |
930 |
480 |
65 |
810 |
840 |
940 |
528 |
424 |
44 |
32 |
4 |
|
480 |
680 |
360 |
298 |
960 |
500 |
65 |
820 |
870 |
970 |
545 |
445 |
50 |
32 |
4 |
|
500 |
710 |
380 |
305 |
1060 |
570 |
70 |
900 |
1000 |
1120 |
600 |
480 |
50 |
32 |
4 |
|
530 |
730 |
410 |
315 |
1090 |
580 |
70 |
920 |
1020 |
1140 |
620 |
500 |
50 |
32 |
4 |
|
560 |
780 |
430 |
355 |
1140 |
620 |
75 |
970 |
1080 |
1200 |
674 |
554 |
50 |
32 |
4 |
|
600 |
600 |
460 |
380 |
1180 |
650 |
75 |
1000 |
1130 |
1260 |
700 |
580 |
50 |
32 |
4 |
|
630 |
860 |
480 |
380 |
1220 |
670 |
80 |
1060 |
1170 |
1300 |
720 |
600 |
50 |
32 |
4 |
|
670 |
920 |
510 |
421 |
1260 |
690 |
85 |
1150 |
1250 |
1370 |
750 |
630 |
50 |
32 |
6 |
|
710 |
960 |
540 |
435 |
1330 |
710 |
85 |
1200 |
1340 |
1470 |
800 |
670 |
50 |
32 |
6 |
|
750 |
1050 |
570 |
435 |
1400 |
750 |
90 |
1260 |
1420 |
1580 |
850 |
710 |
60 |
32 |
6 |
|
800 |
1100 |
610 |
435 |
1480 |
800 |
90 |
1300 |
1460 |
1620 |
920 |
760 |
60 |
32 |
6 |

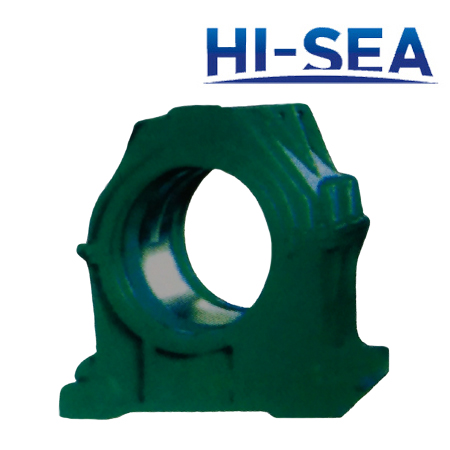

Product displaying:
Vessel Gliding Intermediate Bearing (Type A)

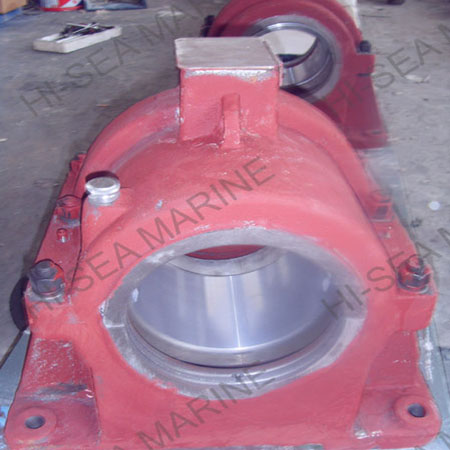

Ship Intermediate Bearing (Type B)
