Marine JQ/CS 48A Type Stern Tube Bearing
Made of white metal, this type of marine stern tube bearing is used together with JQ/CS 48A sealing apparatus. It is approved by CCS, BV, DNV, KR, RINA, etc. We can offer the specified certificate according to customer¡¯s demand.
Drawing and specifications:

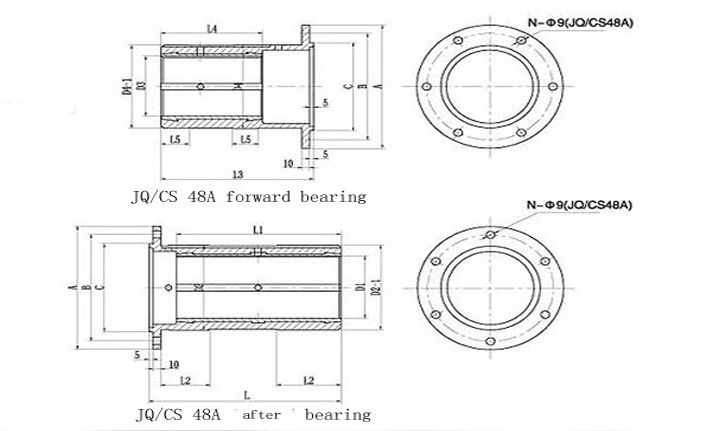

Drawing of Marine 48A Type Stern Tube Bearing
unit: mm
Specification |
A |
B |
C |
N |
D1 |
D2 |
L |
L1 |
L2 |
L3 |
L4 |
L4 |
Weight (kg) |
|
Front |
Back |
|||||||||||||
45 |
110 |
90 |
70 |
4 |
40 |
60 |
135 |
100 |
25 |
95 |
60 |
15 |
1.5 |
2 |
50 |
115 |
95 |
75 |
4 |
45 |
66 |
150 |
115 |
30 |
105 |
70 |
15 |
1.8 |
2.4 |
55 |
120 |
100 |
80 |
4 |
50 |
72 |
160 |
125 |
35 |
115 |
80 |
20 |
2.2 |
2.9 |
60 |
125 |
105 |
85 |
4 |
55 |
77 |
170 |
135 |
40 |
120 |
85 |
20 |
2.6 |
3.5 |
65 |
130 |
110 |
90 |
6 |
60 |
83 |
185 |
150 |
45 |
125 |
90 |
25 |
3.1 |
4.2 |
70 |
135 |
115 |
95 |
6 |
65 |
88 |
195 |
160 |
50 |
130 |
95 |
25 |
3.8 |
5.0 |
75 |
140 |
120 |
100 |
6 |
70 |
93 |
205 |
170 |
55 |
140 |
105 |
30 |
4.3 |
6.0 |
80 |
145 |
125 |
105 |
6 |
75 |
98 |
215 |
180 |
60 |
145 |
110 |
30 |
4.9 |
7.2 |
85 |
150 |
130 |
110 |
6 |
80 |
105 |
225 |
190 |
65 |
155 |
120 |
35 |
5.6 |
9.0 |
90 |
155 |
135 |
115 |
6 |
85 |
110 |
240 |
205 |
70 |
165 |
130 |
35 |
6.4 |
9.8 |
95 |
160 |
140 |
120 |
8 |
90 |
115 |
255 |
220 |
75 |
170 |
135 |
40 |
7.3 |
10.8 |
100 |
165 |
145 |
125 |
8 |
95 |
120 |
265 |
230 |
80 |
175 |
140 |
40 |
8.2 |
12 |
105 |
170 |
150 |
130 |
8 |
100 |
126 |
280 |
245 |
85 |
185 |
150 |
45 |
9.2 |
13.4 |
110 |
175 |
155 |
135 |
8 |
105 |
132 |
295 |
260 |
90 |
195 |
160 |
45 |
10.5 |
15 |
Product showing:
48A Type Stern Tube Bearing
