Type B Bulkhead Stuffing Box

Type B Bulkhead Stuffing Box

Made with cast iron & carbon steel, this product is the type B marine intermediate shaft bulkhead stuffing box. It is the sealing device that is installed in the bulkhead where the shaft is through in order to ensure watertight. This product is in accord with the standard JT/T263-1995. We can provide many classification society certificates such as CCS, BV, DNV, KR, NK, GL, and RINA.

Features:

1. Material: cast iron & carbon steel

2. Standard: JT/T263-1995

3. Certificates: CCS, BV, DNV, KR, GL, etc.

4. Application: used for the vessels whose bulkhead space is small

Drawing and specifications:

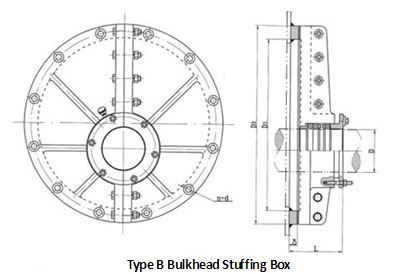

Type B Bulkhead Stuffing Box

Drawing of Type B Bulkhead Stuffing Box

Type

Dimensions (mm)

D

D1

D2

L

h

n

d

¦Ä

oil cup (cm3)

B220

220

576

646

180

90

12

17

22

50

B250

250

646

716

180

110

12

17

22

50

B280

280

710

780

180

115

12

17

22

50

B300

300

755

825

180

120

14

21

28

50

B320

320

798

878

210

130

14

21

28

50

B350

350

858

938

210

140

14

21

28

50

B380

380

918

998

210

150

16

21

28

50

B400

400

958

1038

210

160

16

21

28

50

B450

450

1056

1145

230

175

16

21

28

100

B470

470

1107

1197

230

185

18

25

34

100

B500

500

1170

1260

230

195

18

25

34

100

B530

530

1234

1324

230

205

18

25

34

100

B560

560

1296

1386

250

215

20

25

34

100

B600

600

1380

1480

250

230

20

25

34

100

Product displaying:

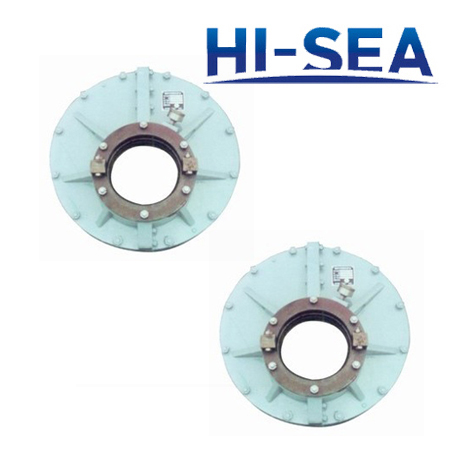

Type B Bulkhead Stuffing Box

Type B Intermediate Shaft Bulkhead Stuffing Box
