Bulkhead Gearing Device
[Search Related Products]Bulkhead Gearing Device
This product is marine bulkhead gearing device. It is suitable for power transmission of the ship¡¯s bulkhead between pump room and engine room (speed no more than 3000r/min) of vessels which transport the crude oil, petroleum products and liquid chemicals. It is in line with national standards and ship inspection requirements.
Drawing and specification:

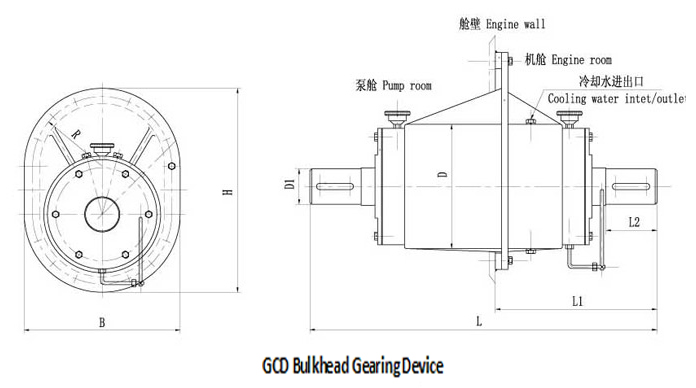

Drawing of Bulkhead Gearing Device
Model |
Cooling water capacity m3/h |
L |
H |
B |
L1 |
L2 |
D |
R |
D1 |
Weight (kg) |
Cooling water intake/outlet |
mm |
|||||||||||
GCD-30 |
1 |
580 |
550 |
420 |
280 |
58 |
235 |
187.5 |
Ø30 |
100 |
M14x1.5 |
GCD-40 |
1 |
640 |
550 |
420 |
310 |
82 |
235 |
187.5 |
Ø40 |
109 |
|
GCD-50 |
1 |
680 |
550 |
420 |
330 |
82 |
235 |
187.5 |
Ø50 |
126 |
|
GCD-60 |
1 |
720 |
550 |
420 |
350 |
105 |
295 |
187.5 |
Ø60 |
133 |
|
GCD-70 |
1 |
760 |
550 |
420 |
380 |
105 |
295 |
187.5 |
Ø70 |
150 |
|
GCD-80 |
1 |
800 |
550 |
420 |
390 |
130 |
295 |
187.5 |
Ø80 |
180 |
|
GCD-90 |
1.5 |
880 |
550 |
420 |
410 |
130 |
295 |
187.5 |
Ø90 |
230 |
|
GCD-100 |
1.5 |
930 |
670 |
540 |
480 |
165 |
351 |
245 |
Ø100 |
260 |

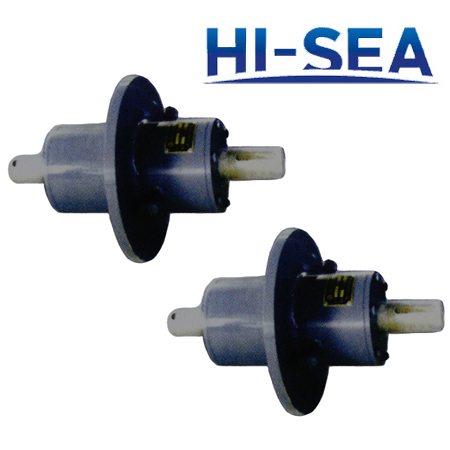

Product showing:
Ship Bulkhead Gearing Device
