Stern Tube White Metal Bearing
[Search Related Products]Stern Tube White Metal Bearing
This product is vessel stern tube bearing made of white metal. This bearing is suitable for vessels of different sizes whose lubricating medium is oil. This bearing consists of two parts: stern tube front bearing and stern tube rear bearing. We can supply two types of this stern tube bearing: type A and type B. If you have any other requirement, we can make a special design.
Drawing and specification:

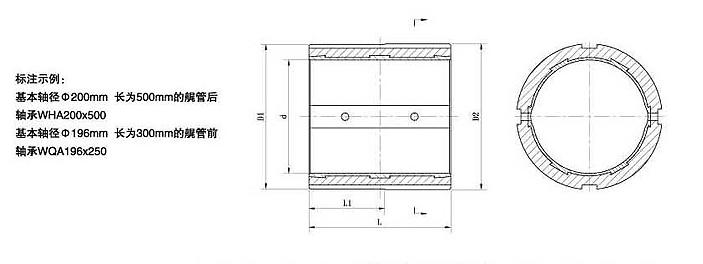

Drawing of Stern Tube White Metal Bearing
Unit: mm
Front bearing technique data |
||||||||
d |
L |
L1 |
D1 |
D2 |
Weight(kg) |
|||
Type A |
Type B |
Type A |
Type B |
Type A |
Type B |
|||
68 |
90 |
100 |
- |
- |
- |
98 |
3 |
4 |
78 |
100 |
120 |
- |
- |
- |
112 |
5 |
6 |
88 |
110 |
135 |
- |
- |
- |
124 |
6 |
7 |
98 |
125 |
150 |
- |
80 |
134 |
135 |
8 |
9 |
108 |
140 |
165 |
- |
90 |
144 |
145 |
9 |
10 |
118 |
150 |
180 |
80 |
95 |
155 |
156 |
11 |
13 |
128 |
165 |
195 |
90 |
105 |
165 |
166 |
13 |
15 |
138 |
175 |
210 |
95 |
110 |
177 |
178 |
15 |
18 |
148 |
190 |
225 |
100 |
120 |
188 |
190 |
19 |
21 |
156 |
200 |
240 |
105 |
125 |
204 |
205 |
24 |
28 |
166 |
215 |
255 |
115 |
135 |
214 |
215 |
27 |
32 |
176 |
225 |
270 |
120 |
140 |
224 |
225 |
31 |
35 |
186 |
240 |
285 |
125 |
150 |
235 |
236 |
35 |
40 |
196 |
250 |
300 |
135 |
160 |
245 |
246 |
40 |
45 |
215 |
275 |
330 |
155 |
175 |
264 |
266 |
45 |
55 |
235 |
300 |
360 |
160 |
190 |
286 |
288 |
57 |
68 |
245 |
315 |
375 |
170 |
200 |
302 |
304 |
70 |
83 |
255 |
325 |
390 |
175 |
205 |
313 |
315 |
76 |
91 |
275 |
350 |
420 |
185 |
220 |
336 |
338 |
92 |
111 |
295 |
375 |
450 |
200 |
235 |
358 |
360 |
110 |
130 |
315 |
400 |
480 |
210 |
250 |
378 |
380 |
124 |
148 |
345 |
440 |
525 |
230 |
275 |
408 |
415 |
148 |
176 |
375 |
475 |
570 |
250 |
295 |
442 |
444 |
182 |
220 |
395 |
500 |
600 |
260 |
315 |
468 |
470 |
222 |
266 |
445 |
560 |
680 |
300 |
355 |
522 |
524 |
296 |
356 |
465 |
590 |
710 |
310 |
370 |
543 |
545 |
326 |
392 |
495 |
625 |
750 |
330 |
395 |
578 |
580 |
390 |
468 |
525 |
660 |
800 |
345 |
415 |
608 |
610 |
435 |
528 |
555 |
700 |
840 |
365 |
435 |
638 |
640 |
486 |
583 |
595 |
750 |
900 |
395 |
460 |
680 |
690 |
626 |
750 |
Unit: mm
Rear bearing technique data |
||||||||
d |
L |
L1 |
D1 |
D2 |
Weight (kg) |
|||
Type A |
Type B |
Type A |
Type B |
Type A |
Type B |
|||
70 |
175 |
210 |
95 |
110 |
99 |
100 |
6 |
8 |
80 |
200 |
240 |
105 |
125 |
114 |
115 |
10 |
11 |
90 |
220 |
270 |
115 |
140 |
124 |
125 |
12 |
14 |
100 |
250 |
300 |
130 |
155 |
134 |
135 |
14 |
17 |
110 |
280 |
330 |
140 |
170 |
146 |
147 |
18 |
21 |
120 |
300 |
360 |
155 |
185 |
157 |
158 |
22 |
26 |
130 |
330 |
390 |
170 |
200 |
167 |
168 |
24 |
28 |
140 |
350 |
420 |
185 |
220 |
179 |
180 |
31 |
37 |
150 |
380 |
450 |
195 |
235 |
191 |
192 |
38 |
45 |
160 |
400 |
480 |
210 |
250 |
208 |
209 |
50 |
60 |
170 |
420 |
510 |
220 |
265 |
217 |
218 |
55 |
65 |
180 |
450 |
540 |
235 |
280 |
227 |
228 |
60 |
75 |
190 |
480 |
570 |
250 |
295 |
239 |
240 |
70 |
85 |
200 |
500 |
600 |
260 |
310 |
249 |
250 |
80 |
95 |
220 |
550 |
660 |
280 |
340 |
279 |
280 |
115 |
135 |
240 |
600 |
720 |
310 |
370 |
291 |
292 |
120 |
145 |
250 |
620 |
750 |
320 |
385 |
306 |
308 |
140 |
170 |
260 |
650 |
780 |
335 |
400 |
318 |
320 |
155 |
185 |
280 |
700 |
840 |
360 |
430 |
340 |
342 |
185 |
220 |
300 |
750 |
900 |
385 |
460 |
360 |
364 |
220 |
260 |
320 |
800 |
960 |
410 |
490 |
383 |
385 |
250 |
300 |
350 |
880 |
1050 |
450 |
530 |
414 |
416 |
305 |
360 |
380 |
950 |
1140 |
480 |
585 |
446 |
448 |
370 |
440 |
400 |
1000 |
1200 |
515 |
615 |
474 |
476 |
455 |
550 |
450 |
1120 |
1350 |
575 |
690 |
526 |
528 |
570 |
690 |
470 |
1180 |
140 |
605 |
720 |
548 |
550 |
600 |
790 |
500 |
1250 |
1500 |
640 |
765 |
582 |
584 |
780 |
930 |
530 |
1320 |
1590 |
675 |
810 |
613 |
615 |
880 |
1060 |
560 |
1400 |
1680 |
715 |
855 |
643 |
645 |
980 |
1180 |
300 |
1500 |
1800 |
765 |
915 |
692 |
695 |
1260 |
1515 |
Product displaying:

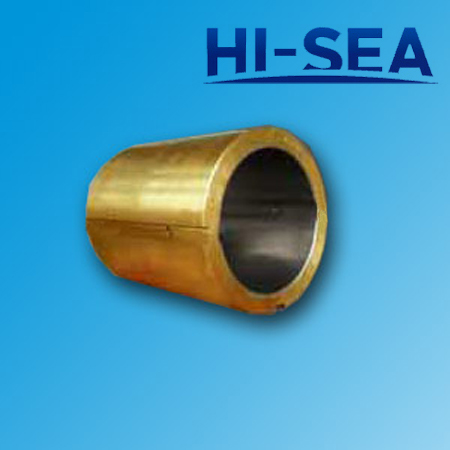

Marine Stern Tube White Metal Bearing

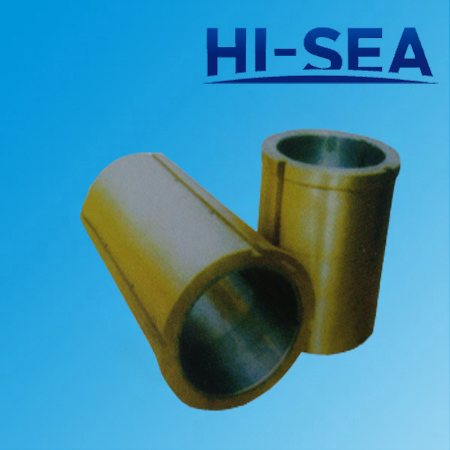

Vessel Stern Tube White Metal Bearing
