Stern Shaft Speed Measurement System

HPZC-102 Stern Shaft Speed Measurement System

HPZC-102 stern shaft speed measurement system is suitable for ships’ stern shaft speed measurement. This device is controlled by micro-computer with strong detection capability and reliability.

Features:

1. Two-color large screen LCD display

2. Reading correctly, intuitively, and stably

3. Non- contact magnetic induction measurement

4. High sensitivity and large sensing range

Technique data:

1. Power voltage: DC24±20%

2. Measurement range: ±30 ～ ±999r/m

3. Measurement accuracy: 0.5%±1

4. Working environment: temperature －20 ～ ＋60℃, humidity ≤98%

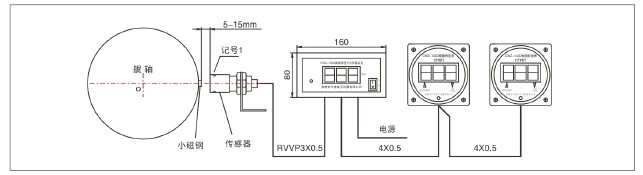

Installation dimension:

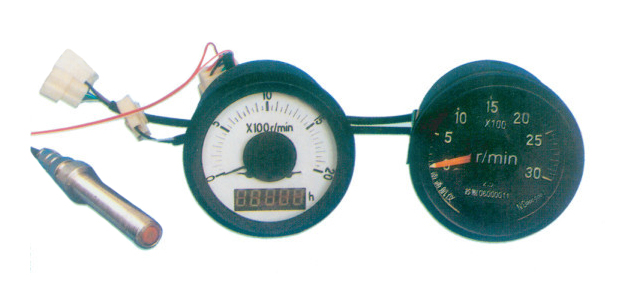

Product picture:

Stern Shaft Speed Measurement System
