CB 39-66 Single Roller Chock
[Search Related Products]
CB*39-66 Single Roller Chock
Marine chocks have multiple forms such as closed chock, open chock, no-roller chock, roller chock. It is mainly divided into two categories: no-roller chock and roller chock.Generally, marine chock is made by casting with intergral and modular forms. Marine cast chocks are normally mounted on the gunwale of the bow and poop. Roller chock can reduce the friction to mooring rope.

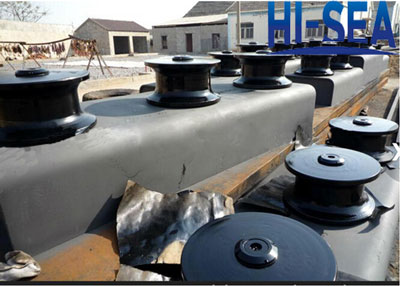

CB*39-66 Single Roller Chock is marine cast iron roller chock. It has one roller and is made strictly following the shipping standard CB*39-66. It has high performace and quality and gets the approval of China Classification Society, American Bureau of Shipping etc.If you¡¯re interested in our chocks, please feel free to contact us.
Specification :
Model Type: CB*39-66 Single Roller Chock
Material: Cast Iron
Technology: Casting
Standard: CB*39-66
Certificate: CCS,DNV,ABS,BV,LR,KR

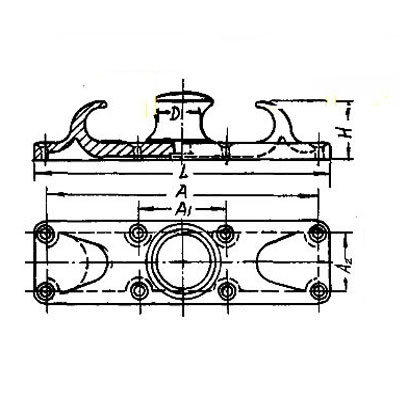

Drawing of CB 39-66 Single Roller Chock:
Type A Single Roller Chock Unit:mm
Steel Rope Diameter |
Hemp Rope Circumference |
Roller Diameter D |
L |
B |
H |
h |
A |
A1 |
A2 |
d |
Bolts Quantity(piece) |
Weight(kg) |
15.5 |
125 |
75 |
600 |
175 |
135 |
40 |
550 |
250 |
125 |
17 |
8 |
35 |
19.5 |
175 |
100 |
750 |
210 |
155 |
45 |
680 |
250 |
140 |
21 |
8 |
63 |
22.5 |
200 |
125 |
900 |
245 |
175 |
50 |
830 |
280 |
175 |
25 |
8 |
104 |
26.0 |
225 |
150 |
1060 |
280 |
205 |
55 |
970 |
320 |
190 |
30 |
8 |
152 |
30.5 |
250 |
170 |
1150 |
310 |
218 |
58 |
1060 |
340 |
220 |
33 |
8 |
187 |
33.5 |
275 |
185 |
1250 |
340 |
235 |
60 |
1160 |
350 |
250 |
33 |
8 |
230 |
37.5 |
300 |
200 |
1300 |
360 |
260 |
65 |
1210 |
330 |
270 |
33 |
12 |
277 |
43.5 |
325 |
230 |
1420 |
400 |
270 |
65 |
1320 |
340 |
300 |
33 |
12 |
370 |
48.5 |
350 |
250 |
1550 |
420 |
285 |
70 |
1430 |
380 |
300 |
39 |
12 |
459 |
CB*39-66 Cast Single Roller Chock Type A:
