NS2589 Mooring Chock
[Search Related Products]
NS2589 Mooring Chock
Marine chocks, also called ¡°bulwark mounted chock¡±, are closed chocks which are used to control the position of mooring rope. It is casted to be round or oval shapes.
NS2589 Mooring Chock is made of cast steel. Its surface is smooth with no burs or sharp edges, which helps reduce the friction of the mooring rope. NS2589 marine chock is mounted on bulwark. It has two optional nominal dimensions. If you¡¯re interested in our chocks, please feel free to contact us.
Specification :
Model Type: NS2589 Mooring Chock
Material: Cast Steel
Technology: Casting
Standard: NS 2589
Nominal Dimension(mm): 300*250,400*250
Certificate: CCS,DNV,ABS,BV,LR,MILL

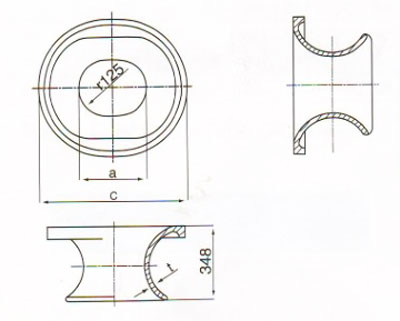

Drawing of NS2589 Mooring Chock:
Unit:mm
Type |
a |
c |
t |
Weight(kg) |
300¡Á250 |
300 |
660 |
20 |
114 |
400¡Á250 |
400 |
760 |
25 |
153 |
