Type U.S. Panama Chock

Panama Chocks

Panama chocks are very important mooring equipment. It bears tremendous loads when mooring the vessels. We provide deck mounted Panama chocks (JIS F 2017-1982 type AC,AP),bulwark mounted Panama chocks (JIS F 2017-1982 type BC,BP) and Type U.S. Panama chocks. If you¡¯re interested in our chocks, please feel free to contact us.

Specification :

Model Type: Type U.S. PANAMA CHOCK

Material: Cast Steel

Nominal Dia: 6¡±¡Á12¡±,7¡±¡Á14¡±,8¡±¡Á16¡±,9¡±¡Á18¡±,10¡±¡Á20¡±

Weight: 71kg~225kg

Certificate: CCS,DNV,ABS,BV,LR,RS,KR

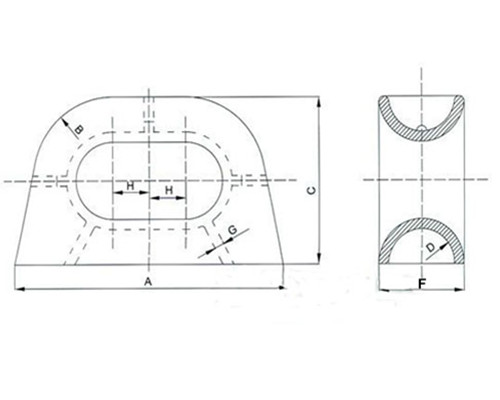

Drawing of Type U.S. PANAMA CHOCK:

Type U.S. Panama Chock

Nominal Dia

Model No.

Size(mm)

Weight(kg)

A

B

C

D

F

G

H

6¡°¡Á12¡°

S-1097

558

165

330

61

178

20

76

71

7¡°¡Á14¡°

S-1098

610

187

374

68

196

22

89

93

8¡°¡Á16¡°

S-1105

626

257

414

80

242

25

101

152

9¡°¡Á18¡°

S-1106

762

235

470

83

260

28

114

180

10¡°¡Á20¡°

S-1101

812

257

514

90

260

30

127

225
