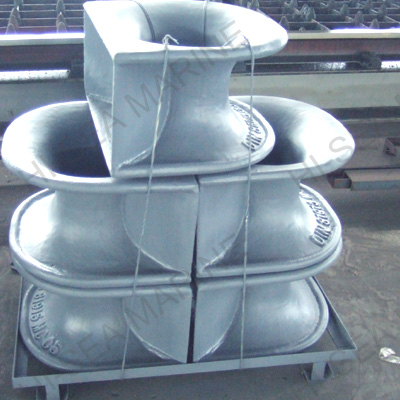

DIN81915 Type C Chock

mooring chock specific requirement summary explaining its technology introduction:

1: the mooring chock body material selection in accordance with GB 8162 204 seamless steel tube. Can also be specified in GB 712 A grade of steel plate is bend into.

2: Stainless steel clad plate selection in accordance with GB 4237 use 1Cr18Ni9Ti stainless steel plate .

3: the mooring chock body at intersecting line and the outer rim, welding surface clean and no crack, war page, skew, Cut straight to sharp edges.

4: mooring chock stainless steel clad plate shall be flat and body joint, the weld shall be no pores, cracks, burrs and lack of Depression.

5: mooring chock completion except stainless steel clad plate, should brush rustproof paint. After loading the goods on board according to the requirements of ship hull paint.

DIN81915-1998 Chock Type C

Specifications

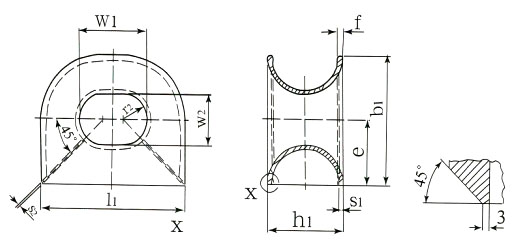

Type	Max. Proof load	b1	e	f	h1	l1	w1	w2	Weight (kg)
1	10KN	250	125	15	160	285	125	90	18
2	20KN	315	157.5	18	200	360	160	115	26
3	30KN	390	195	21	250	450	200	140	42
5	50KN	480	240	24	300	550	250	180	74
8	80KN	585	292.5	27	360	680	320	225	120
12	120KN	710	355	30	440	840	400	270	185
20	200KN	840	420	33	520	1020	500	320	285
32	320KN	1100	550	-	700	1300	600	400	795

DIN81915-1998 Chocks
